Cabin Temperature Sensor / Switch: Diagrams

Component Connector End Views - Continued

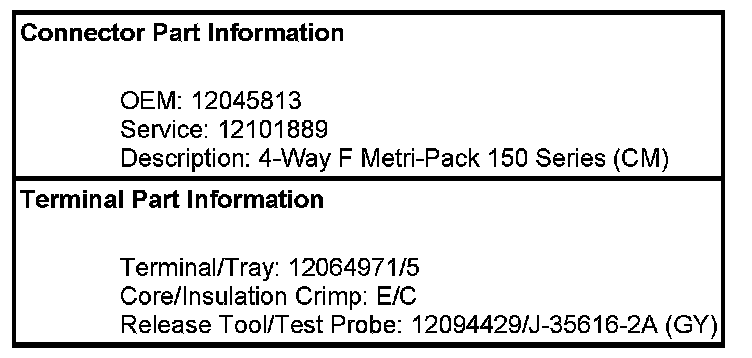

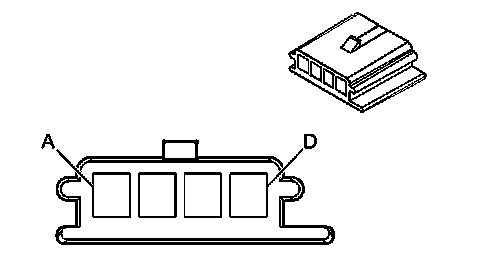

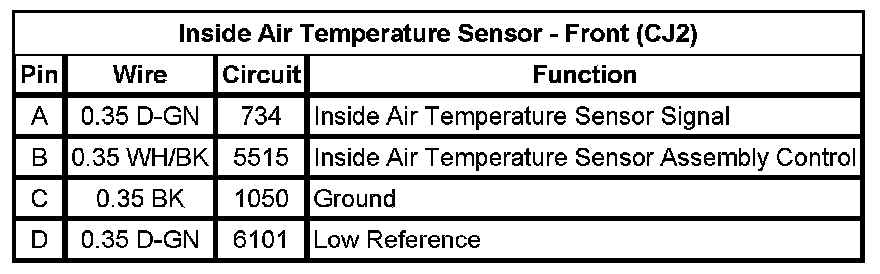

Inside Air Temperature Sensor - Front (CJ2)

Technical service diagram

Technical service diagram

Technical service diagram
