Solar Sensor: Diagrams

Component Connector End Views

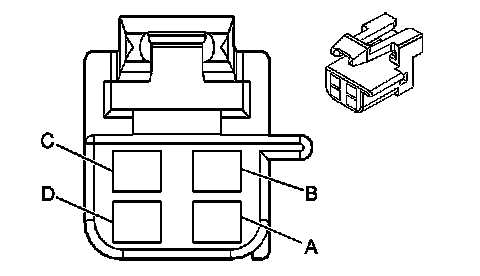

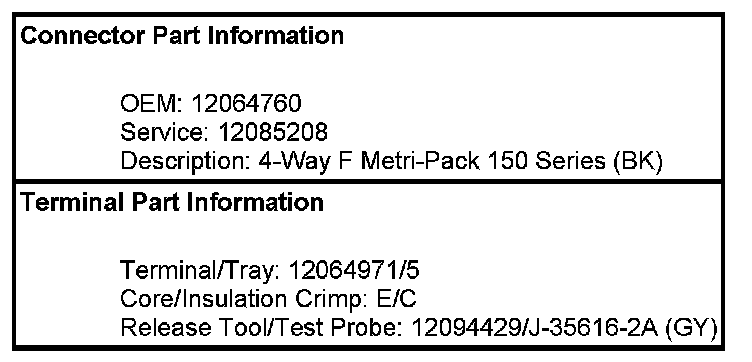

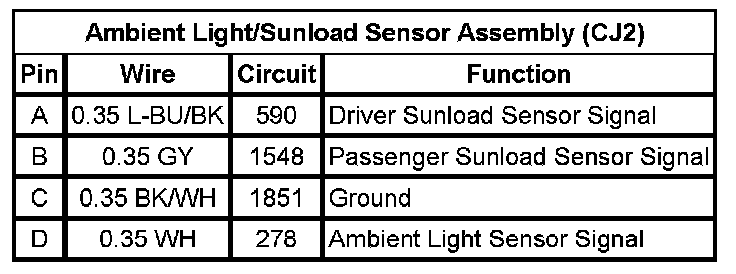

Ambient Light/Sunload Sensor Assembly (CJ2)

Technical service diagram

Technical service diagram

Technical service diagram
