Impact Sensor: Diagrams

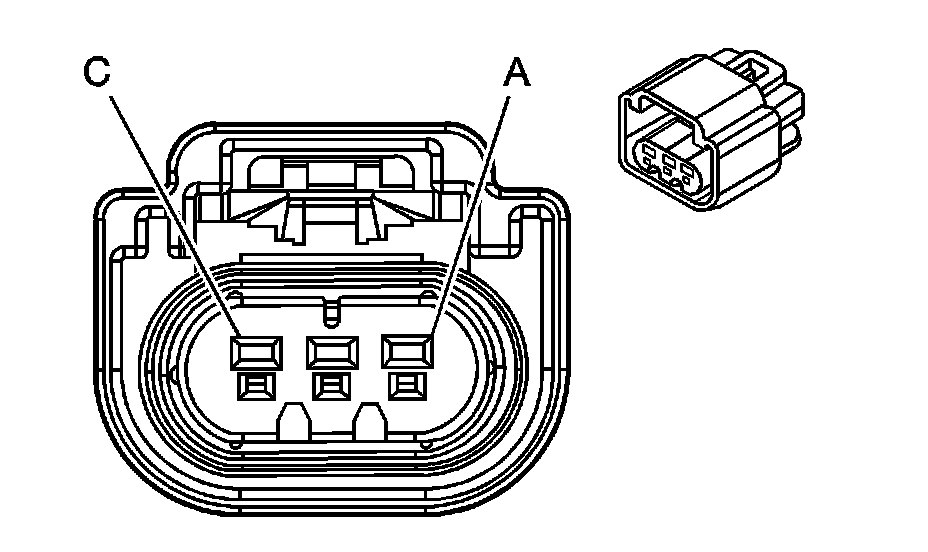

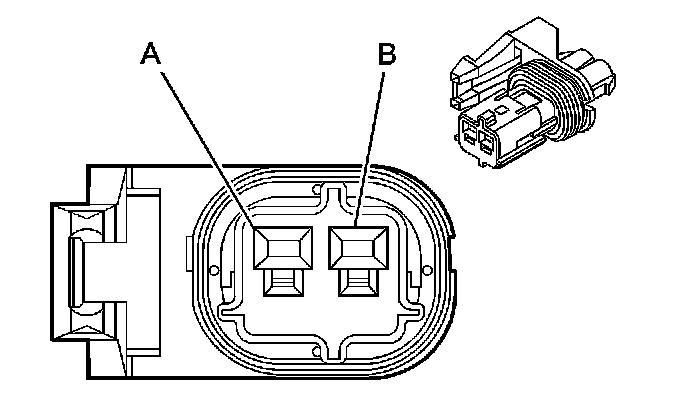

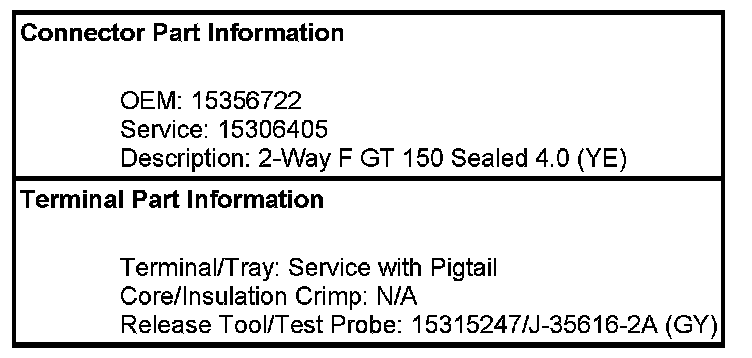

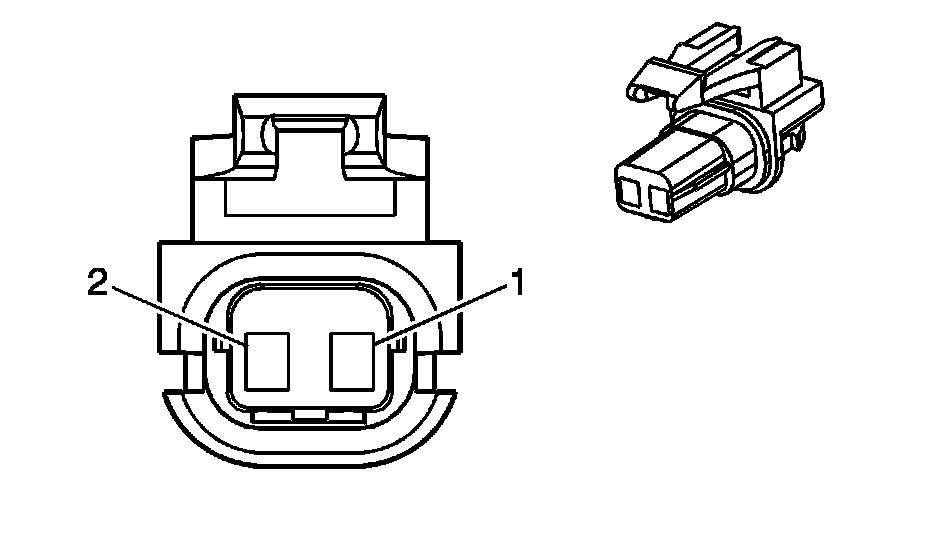

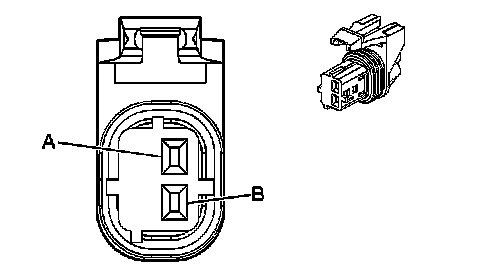

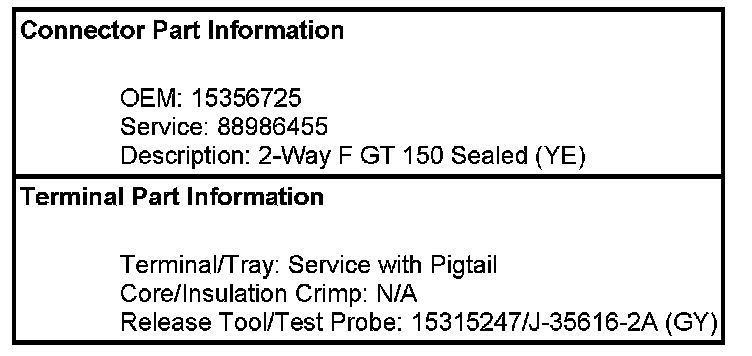

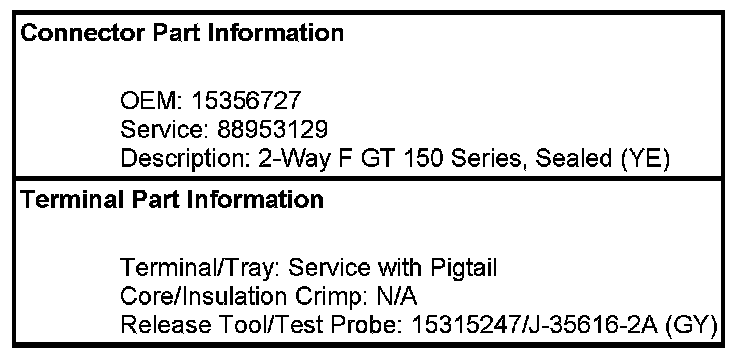

Component Connector End Views

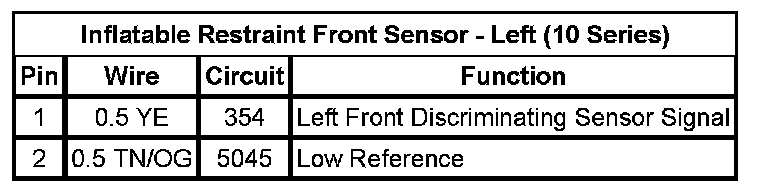

Inflatable Restraint Front Sensor - Left (10 Series)

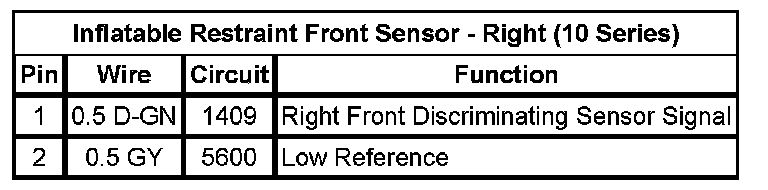

Inflatable Restraint Front Sensor - Right (10 Series)

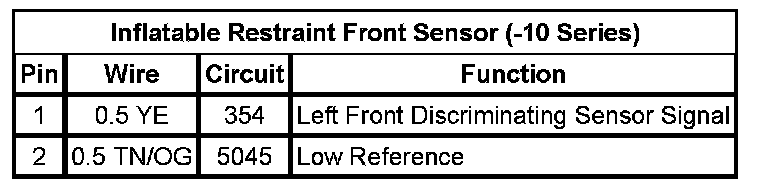

Inflatable Restraint Front Sensor (-10 Series)

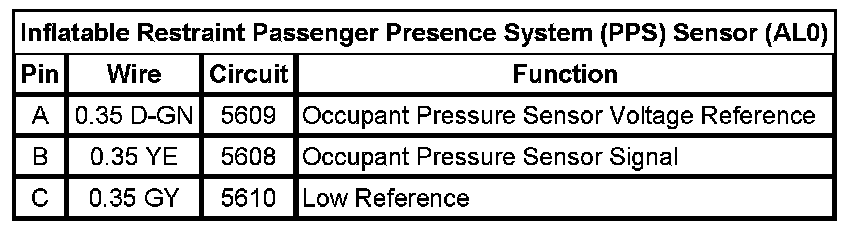

Inflatable Restraint Passenger Presence System (PPS) Sensor (AL0)

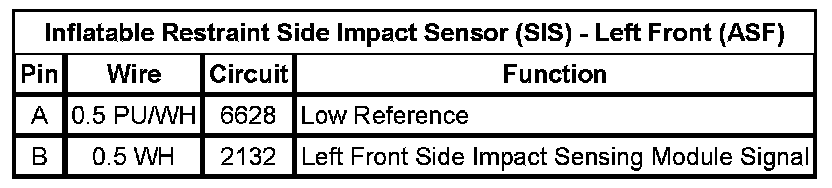

Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)

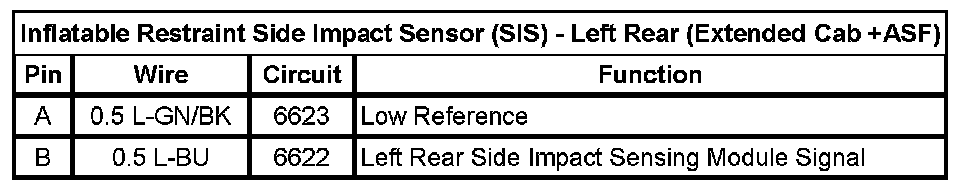

Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Extended Cab +ASF)
Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Crew Cab +ASF)

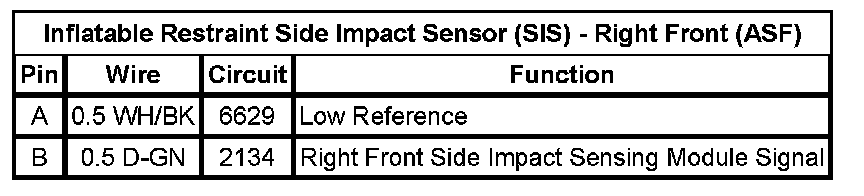

Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)

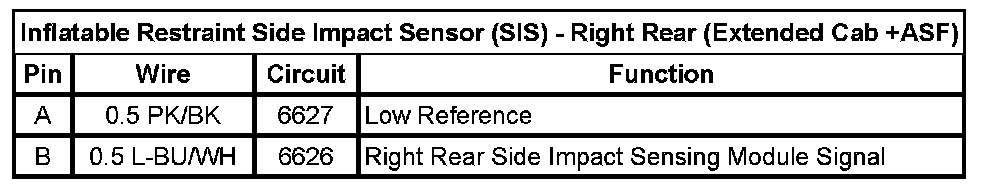

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Extended Cab +ASF)

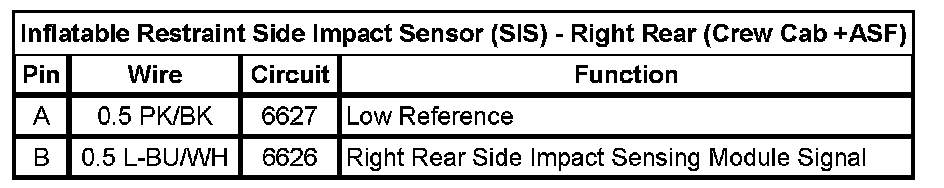

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Crew Cab +ASF)
Inflatable Restraint Vehicle Rollover Sensor (ASF)
