Clutch Pedal Position Sensor / Switch: Service and Repair

Clutch Pedal Engine Start Switch Replacement

Removal Procedure

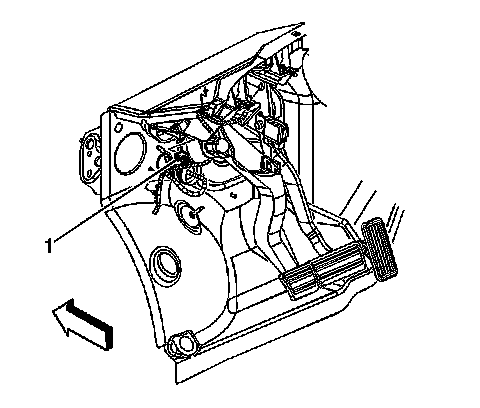

1. Disconnect the clutch pedal position switch electrical connector (1).

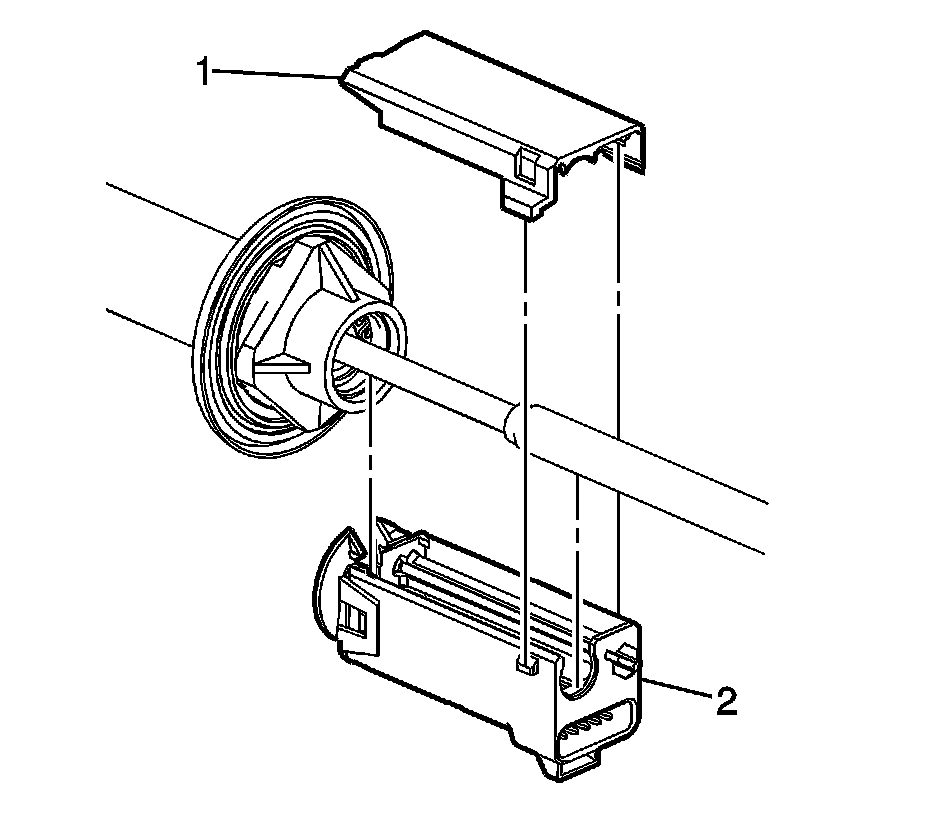

2. Remove the plastic retainer (1) tabs from the clutch pedal position switch (2).
3. Remove the clutch pedal position switch (2) from the pushrod.



Installation Procedure





1. Install the clutch pedal position switch (2) to the pushrod.
2. Install the plastic retainer (1) tabs to the clutch pedal position switch (2).




3. Connect the clutch pedal position switch electrical connector (1).
