Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

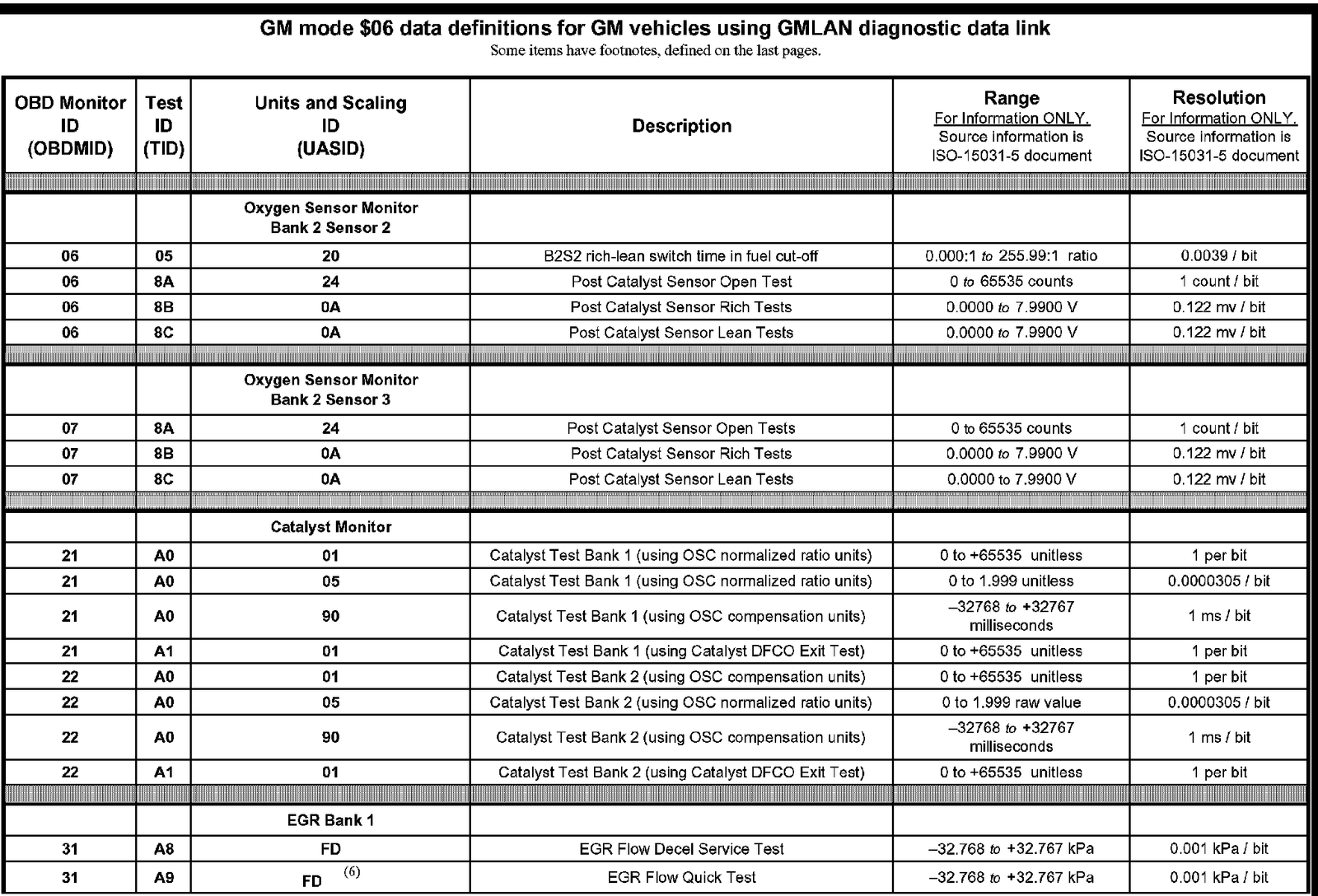

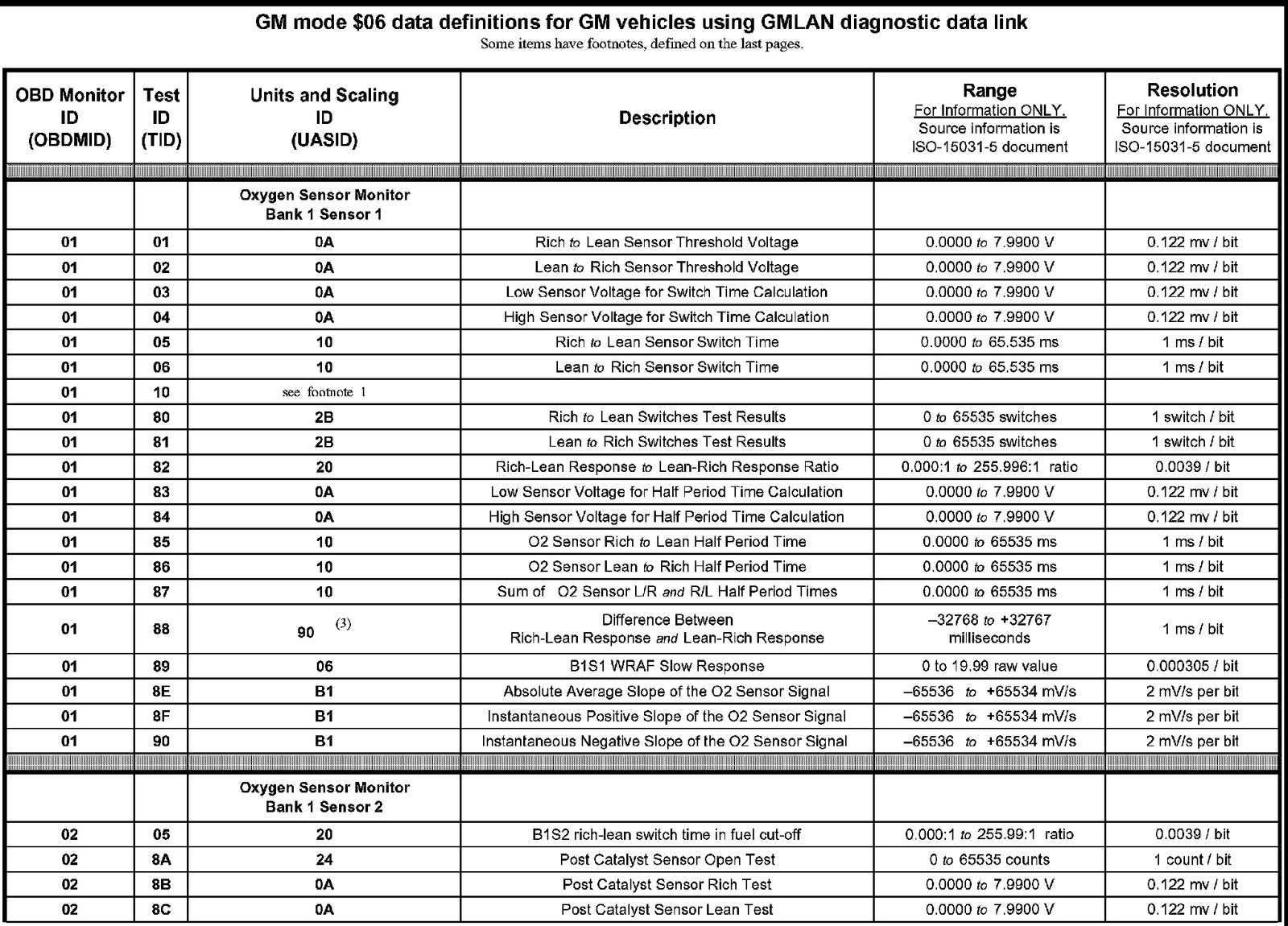

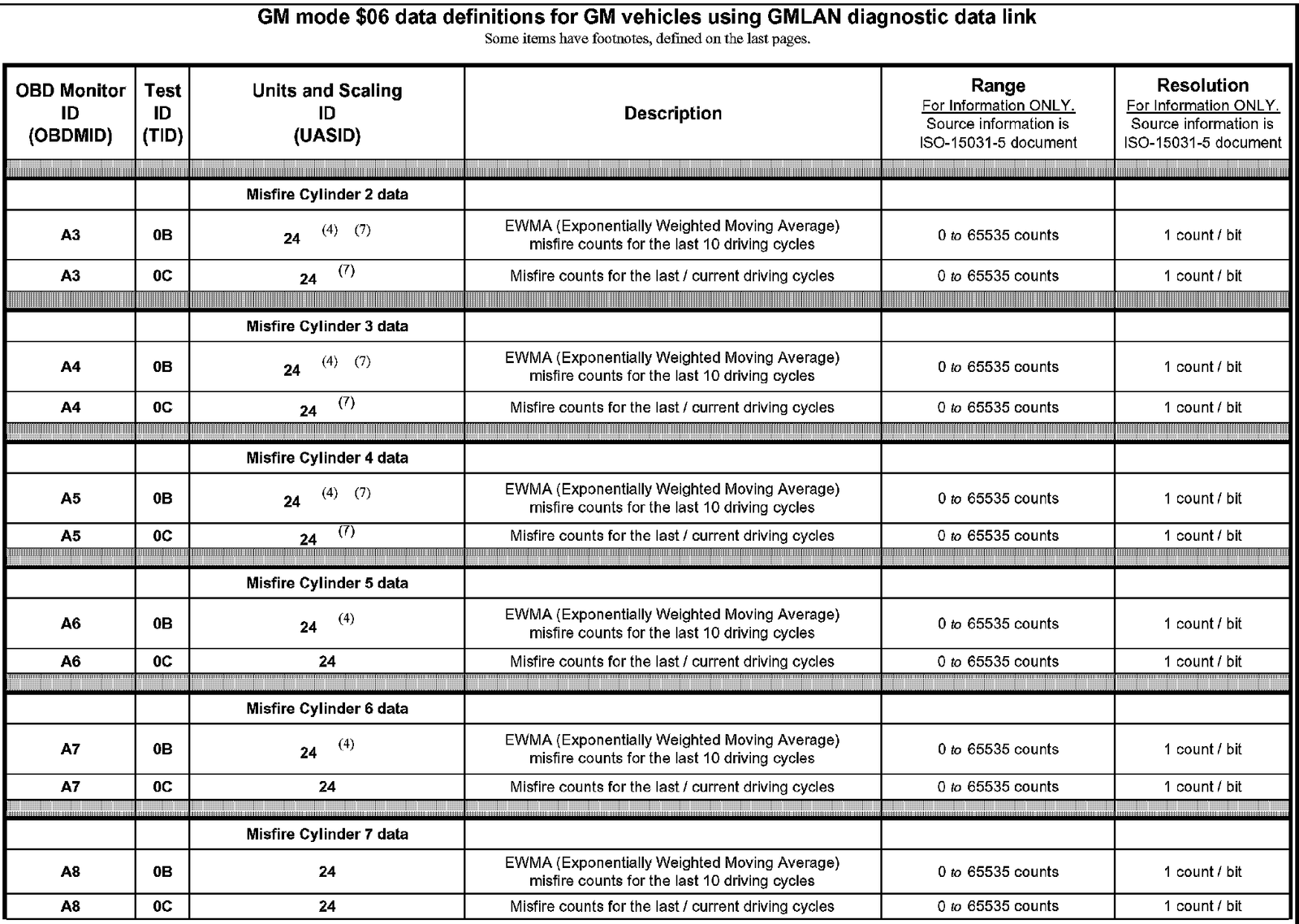

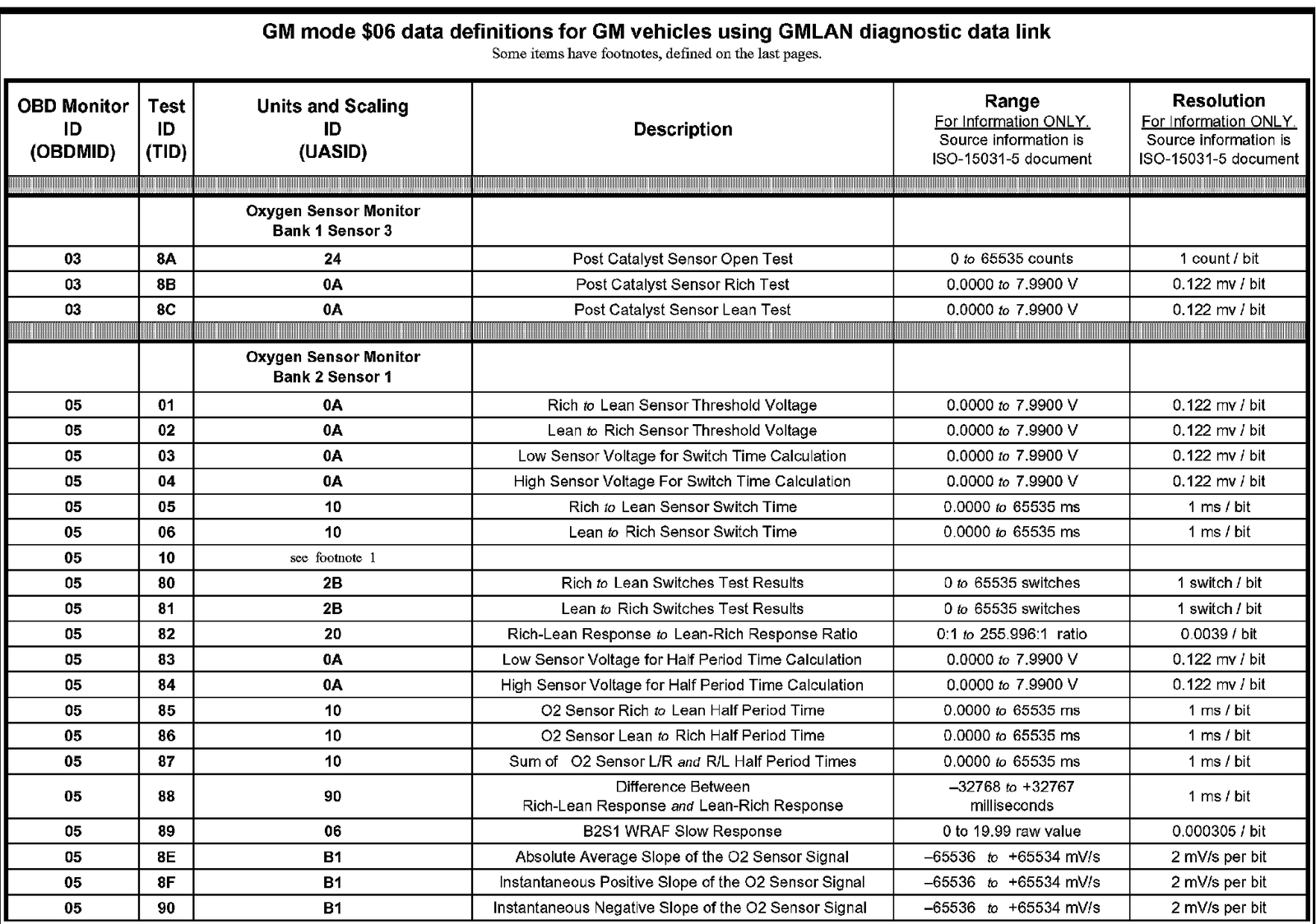

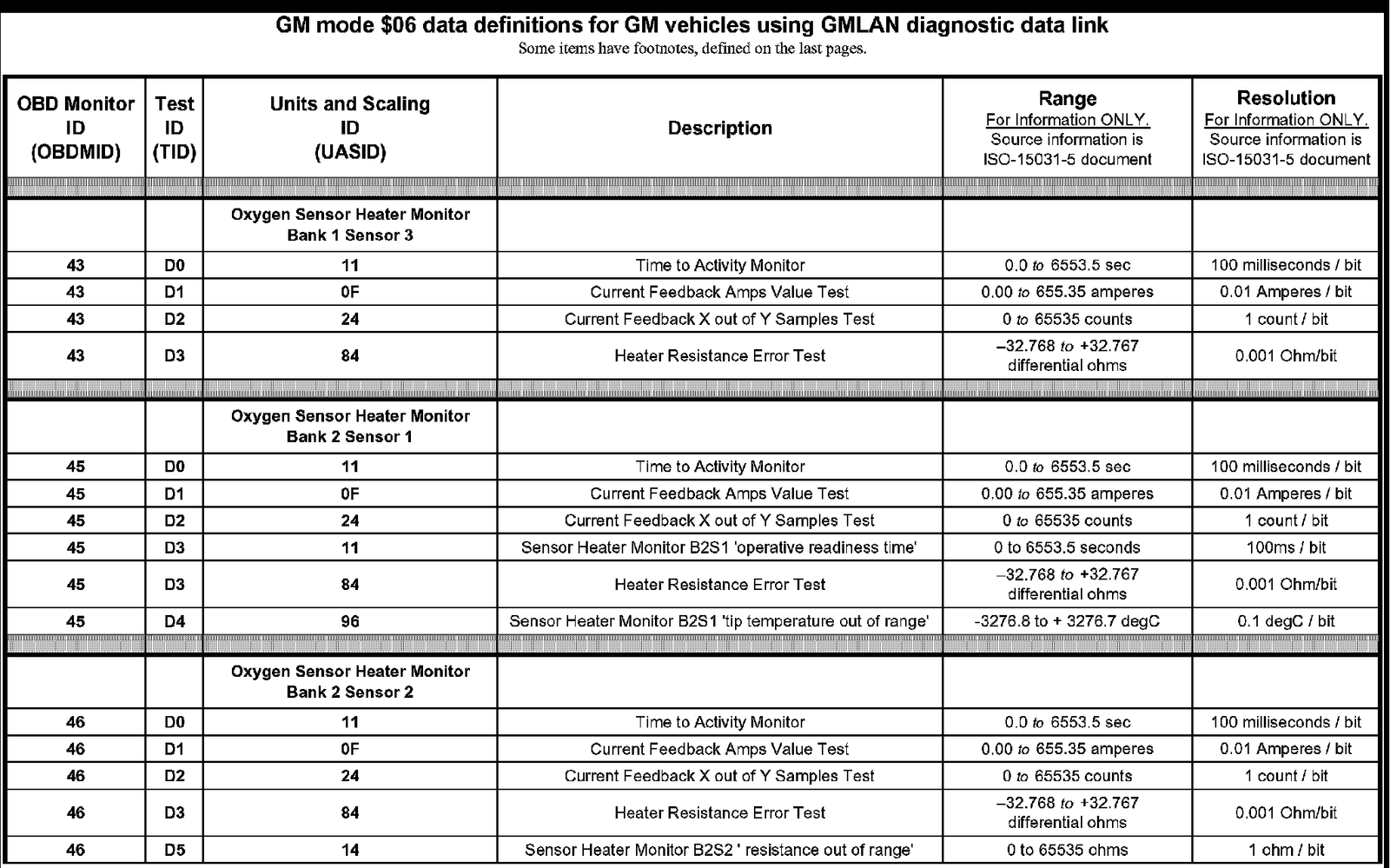

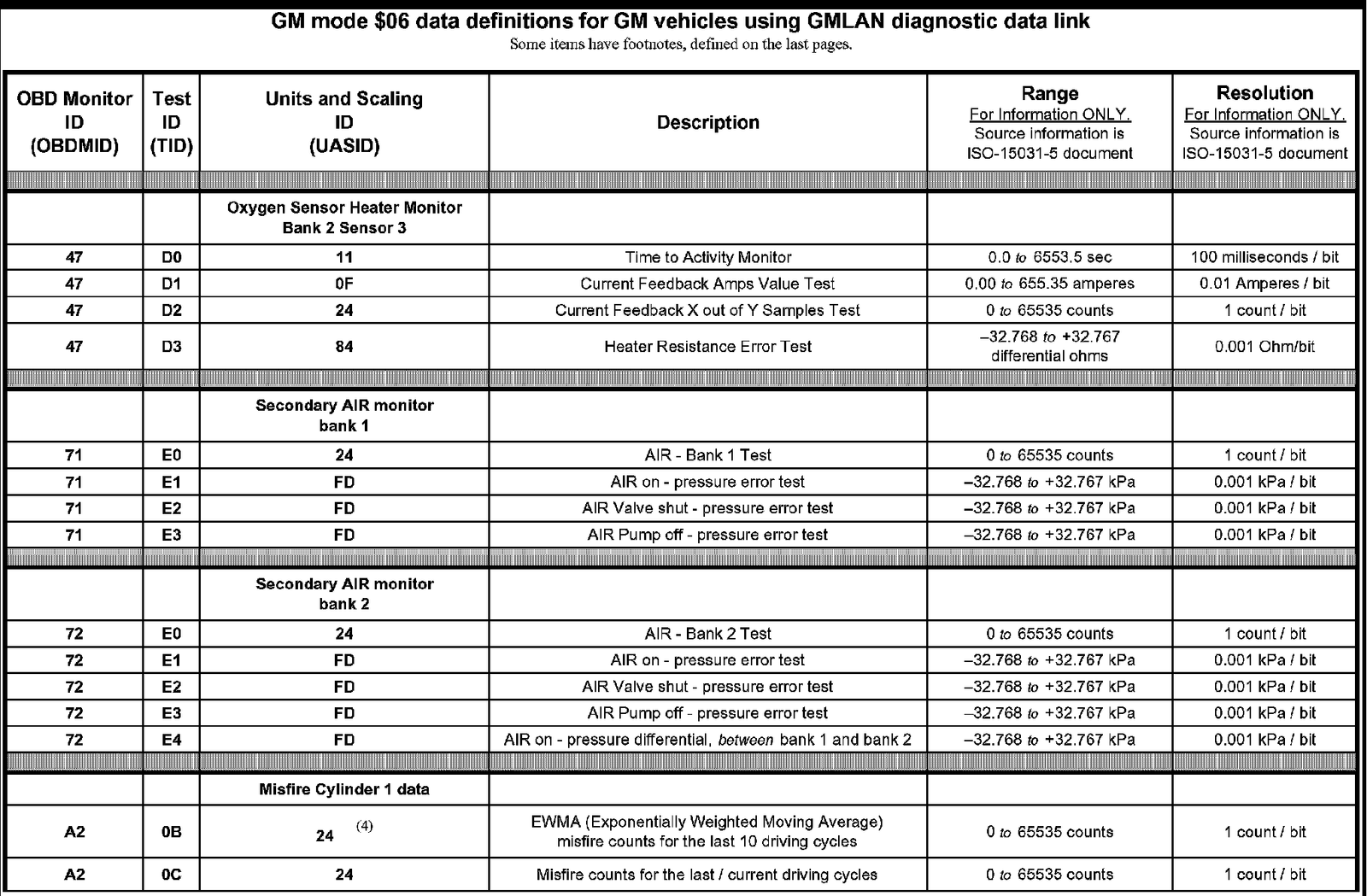

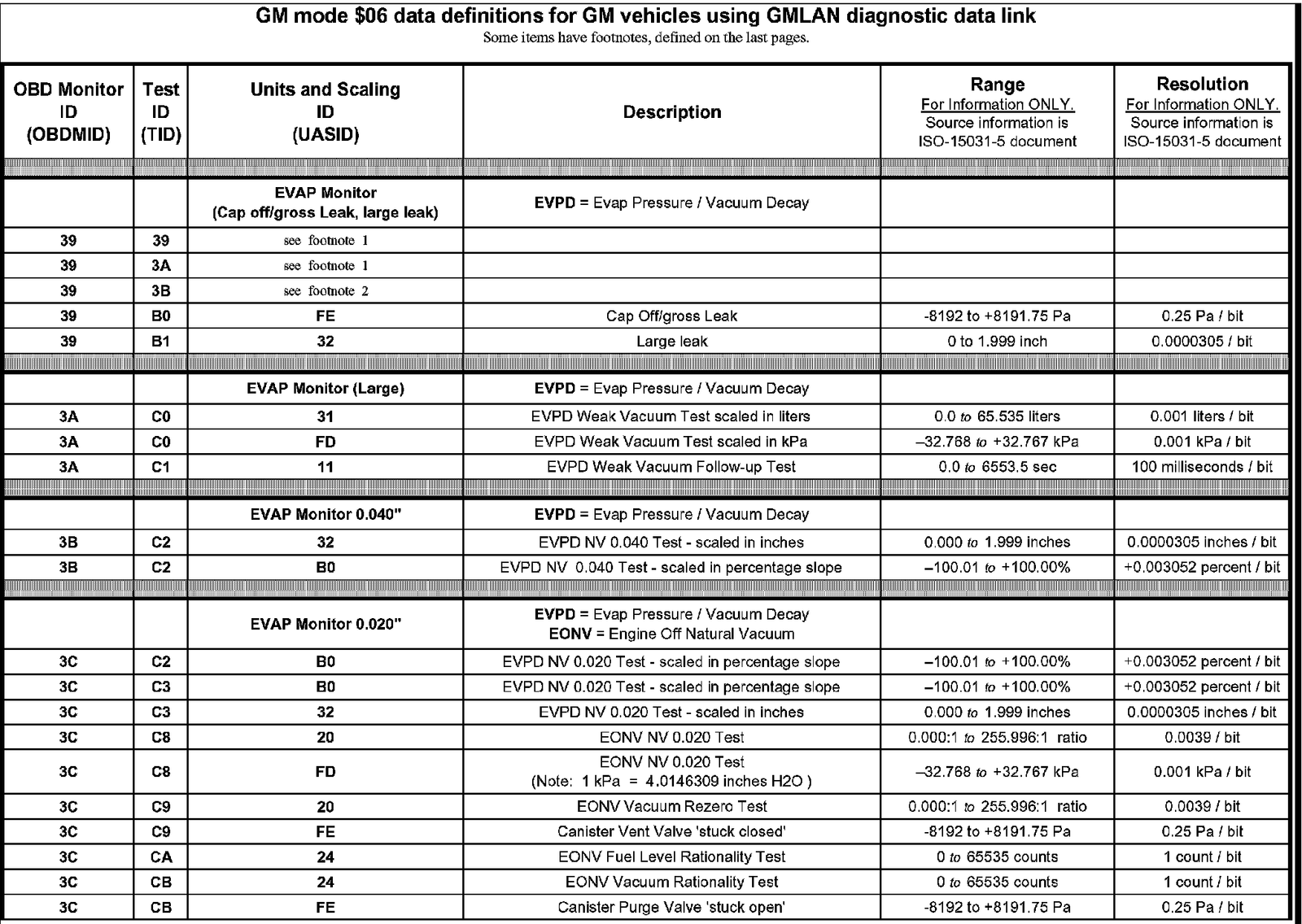

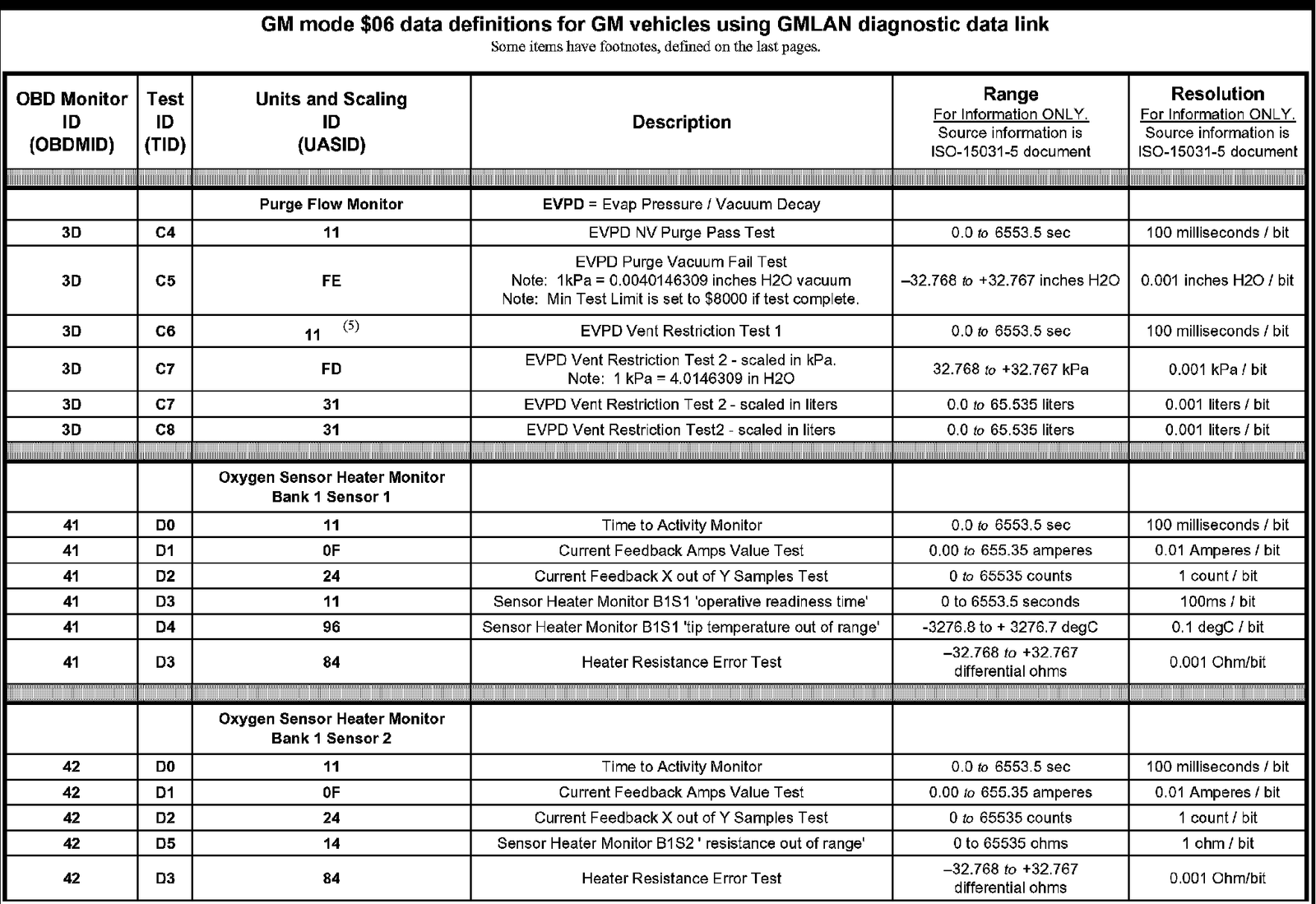

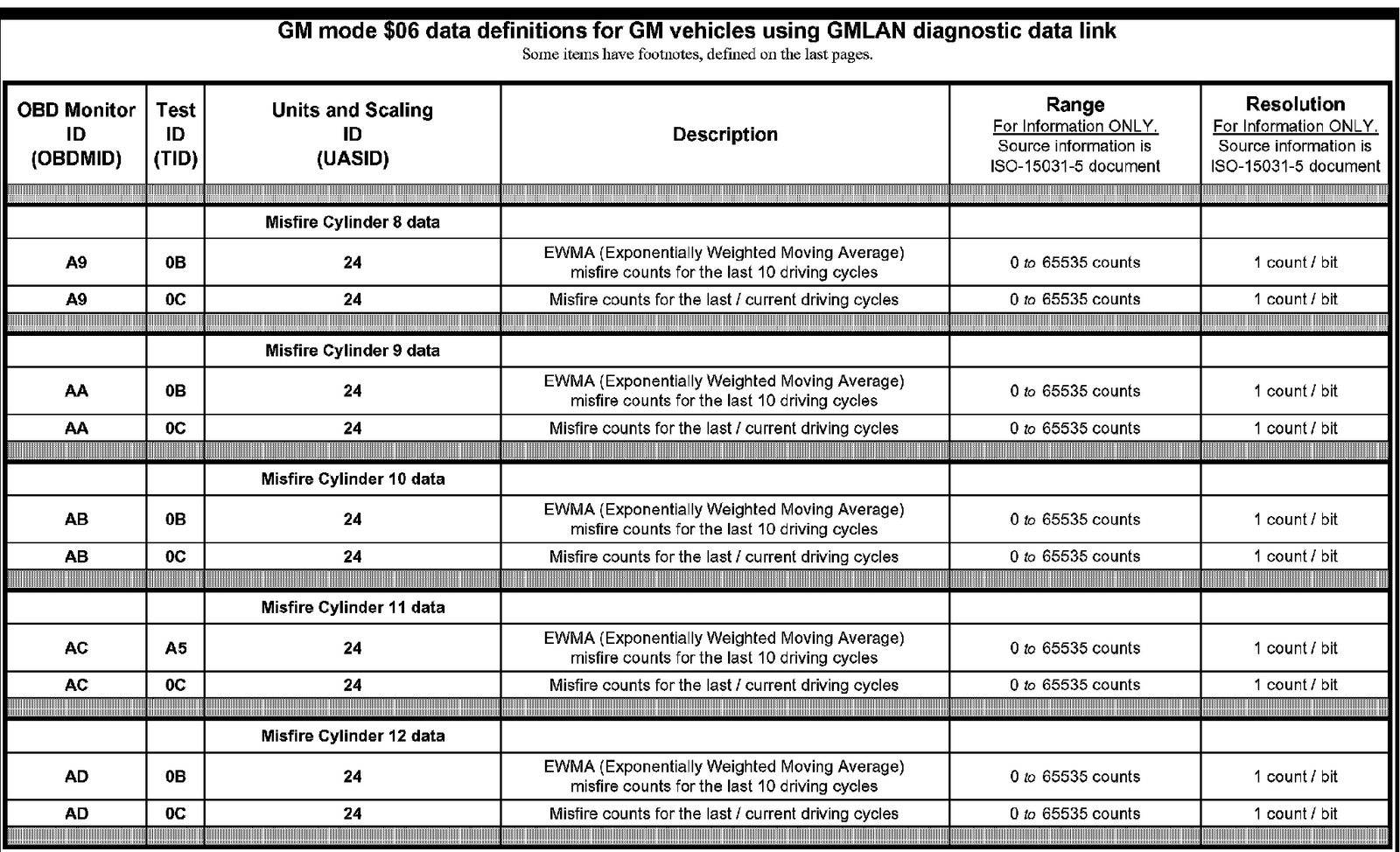

Mode 6 Data

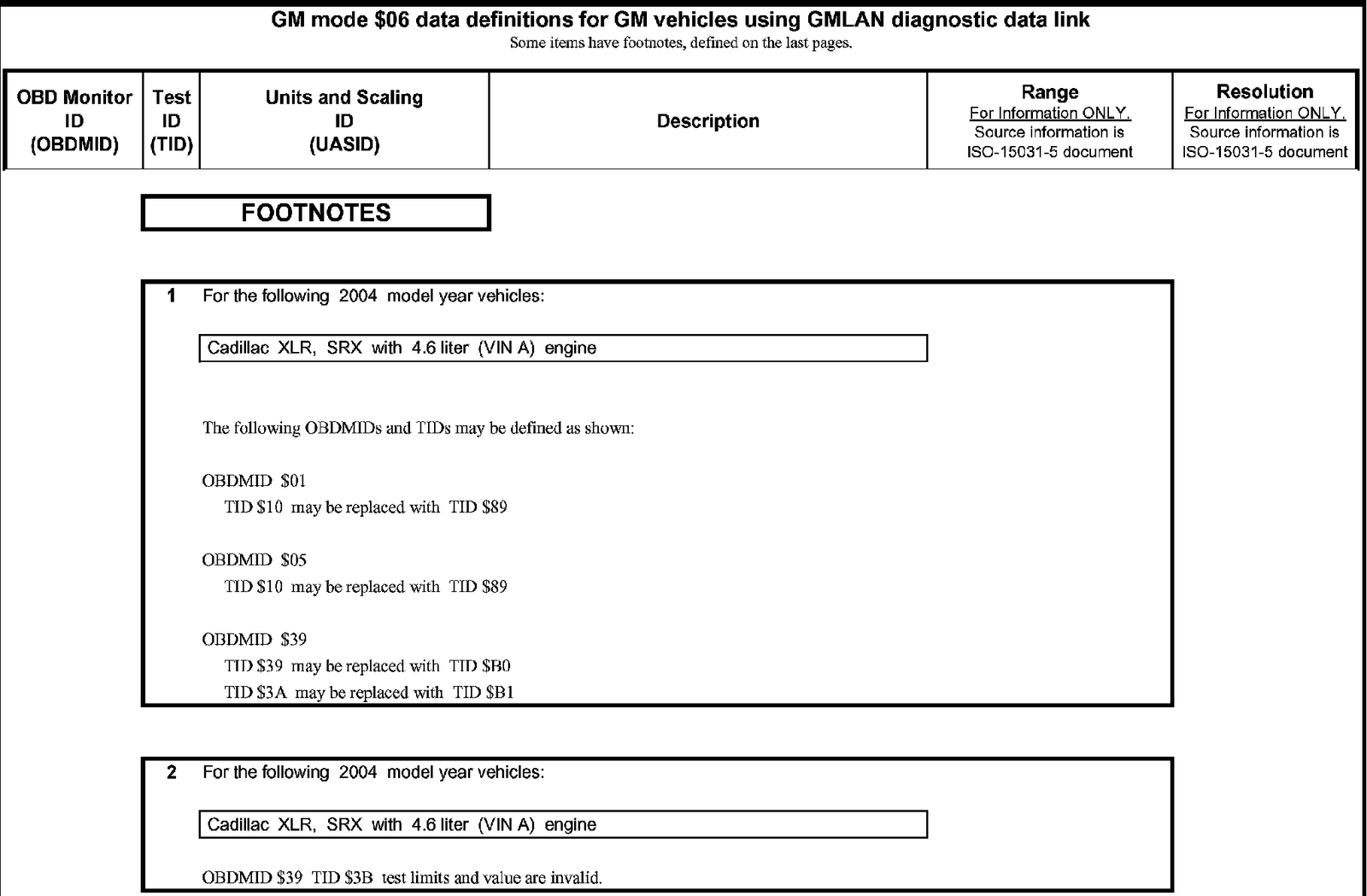

Footnotes 1 & 2:

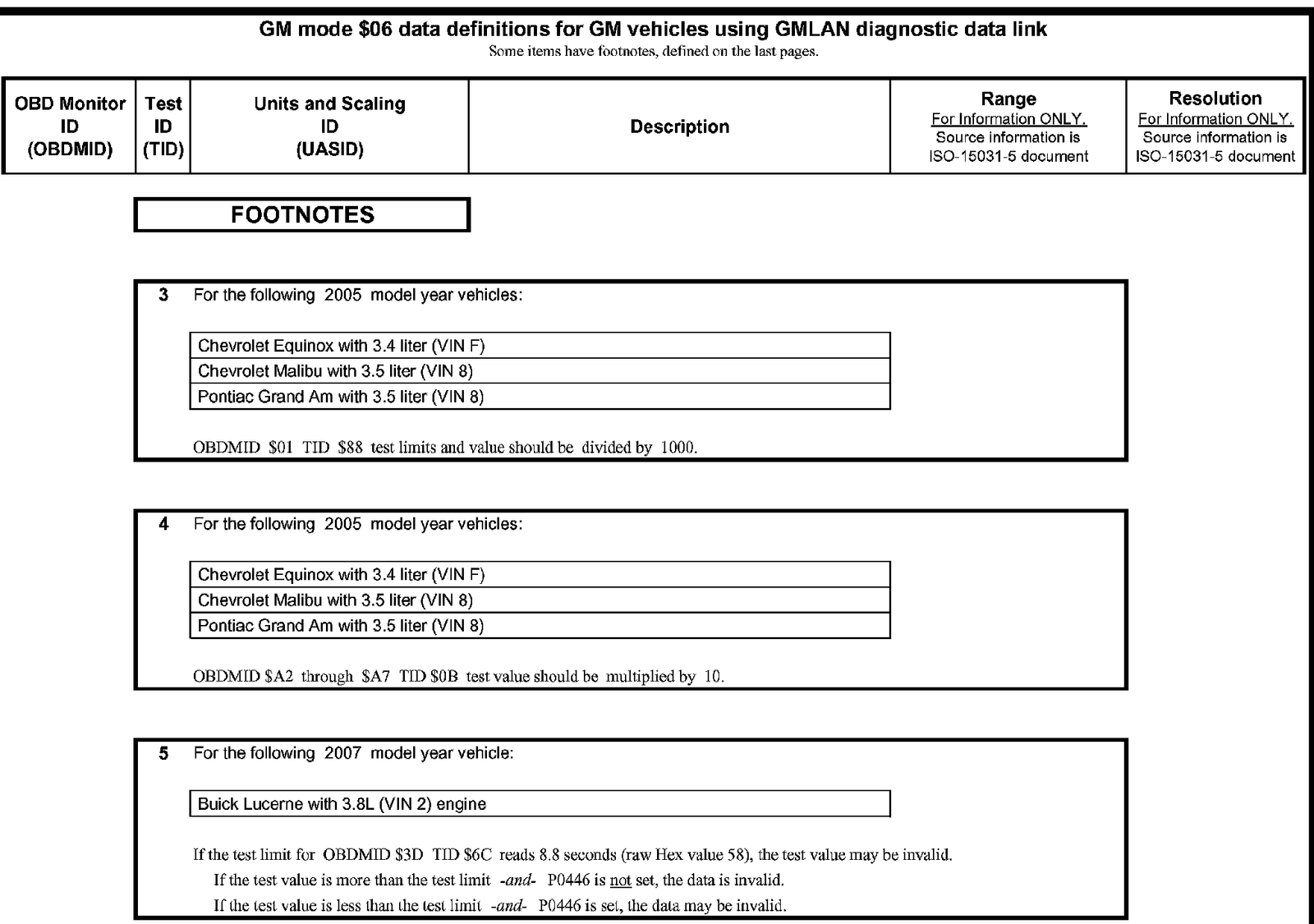

Footnotes 3, 4 And 5:

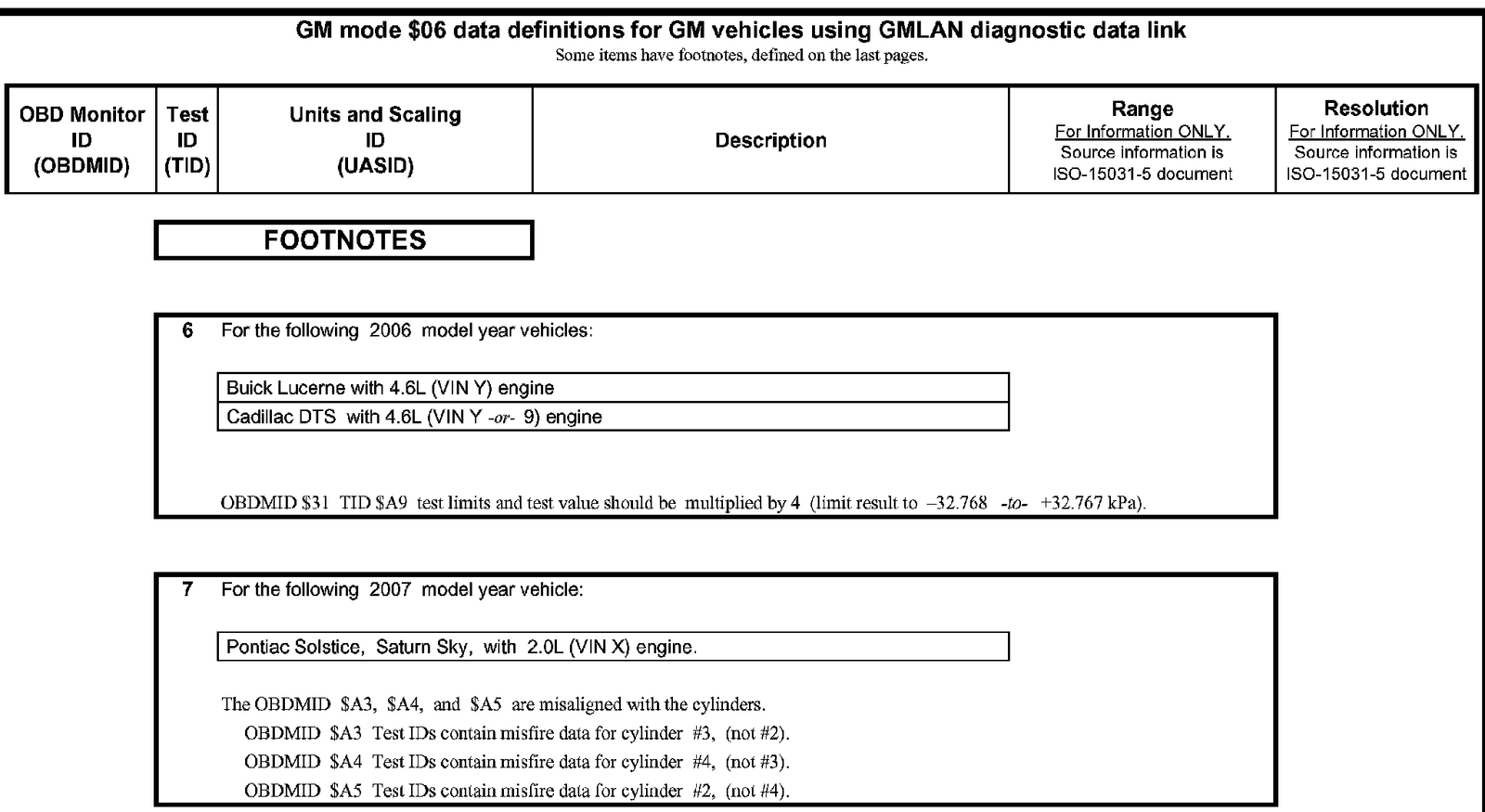

Footnotes 6 & 7:
