Fuel Tank Pressure Sensor: Diagrams

Component Connector End Views

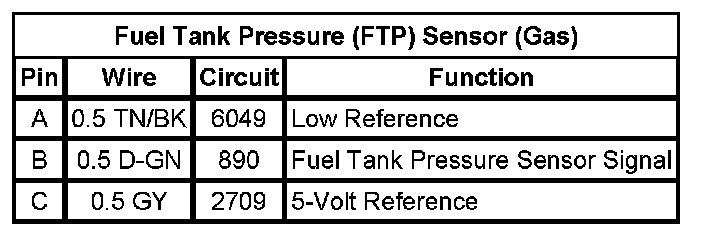

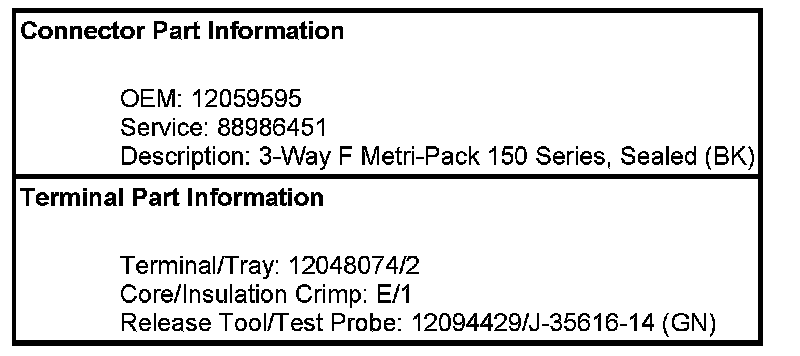

Fuel Tank Pressure (FTP) Sensor (Gas)

Technical service diagram

Technical service diagram

Technical service diagram
