Connector Views

Component Connector End Views - Continued

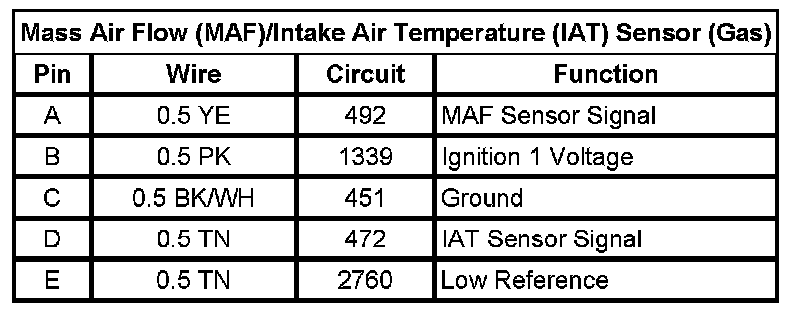

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (Gas)

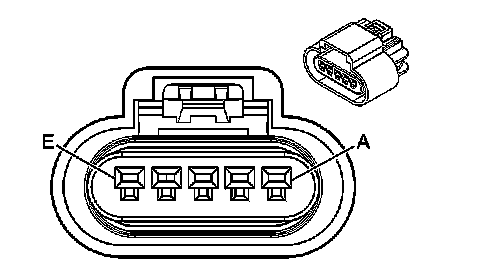

Technical service diagram

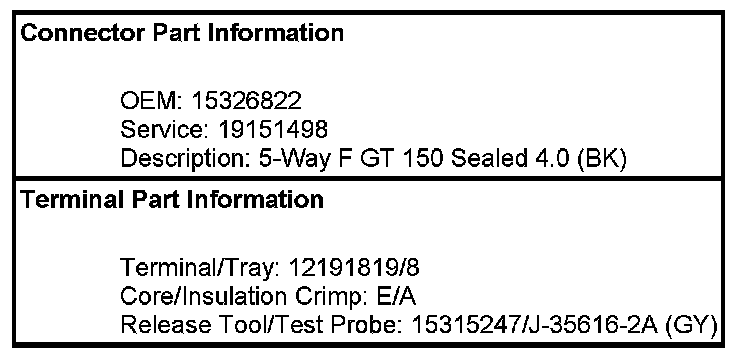

Technical service diagram

Technical service diagram
