Connector Views

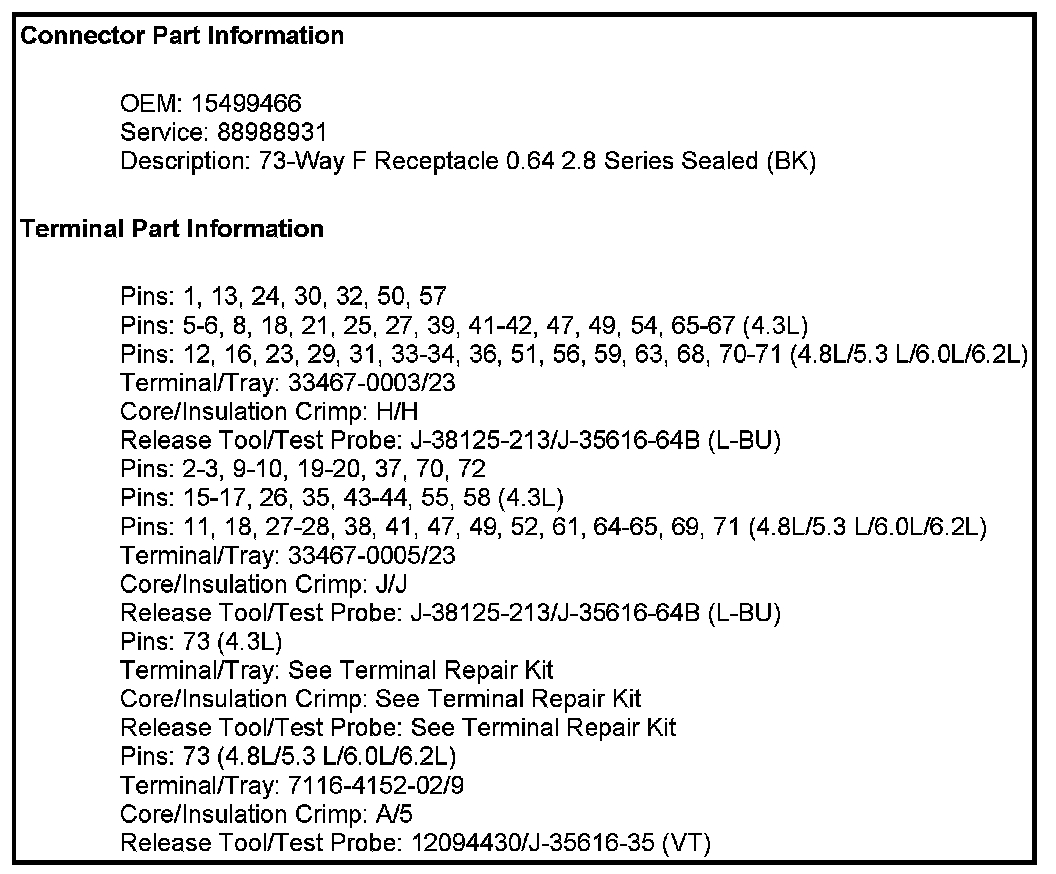

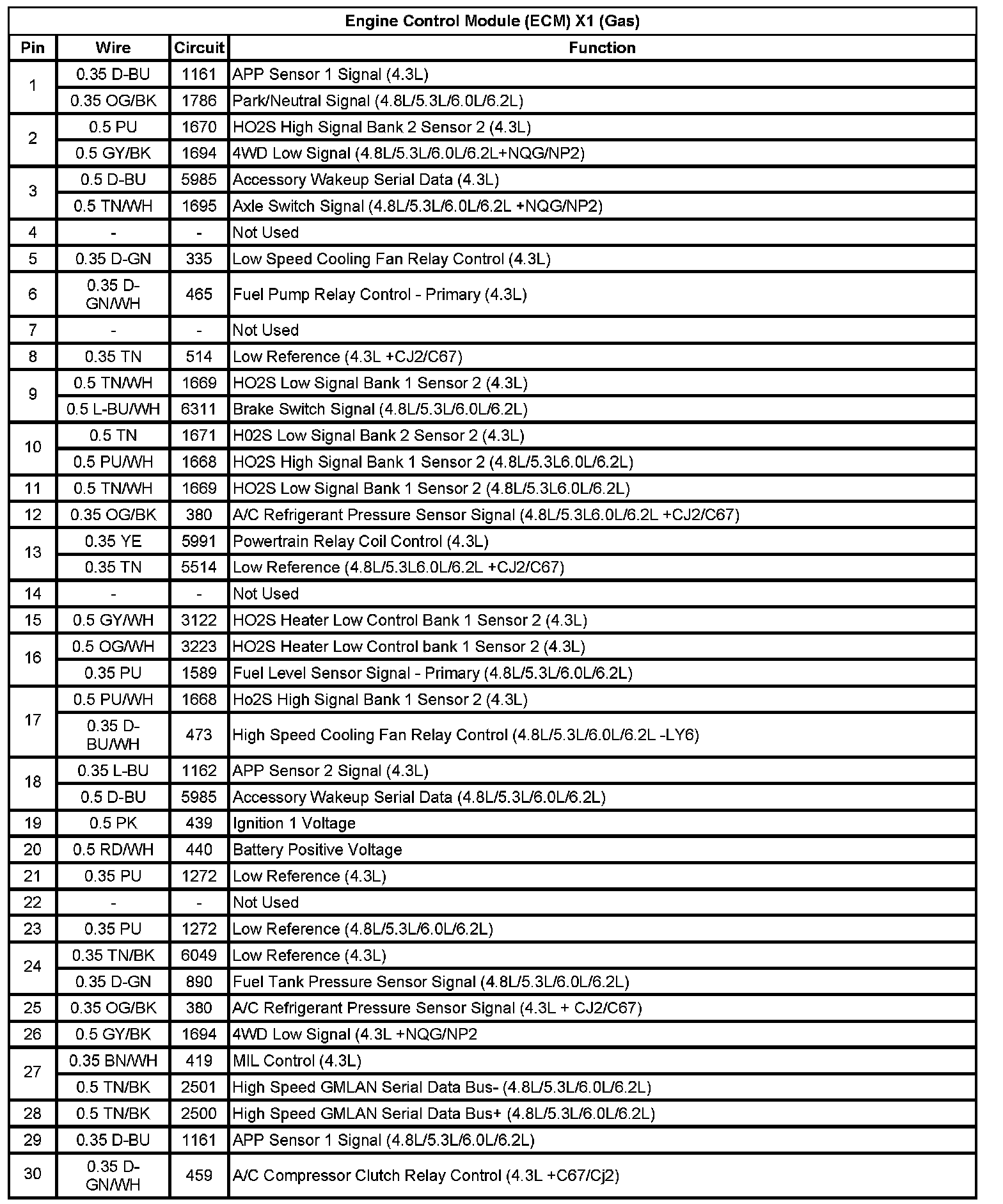

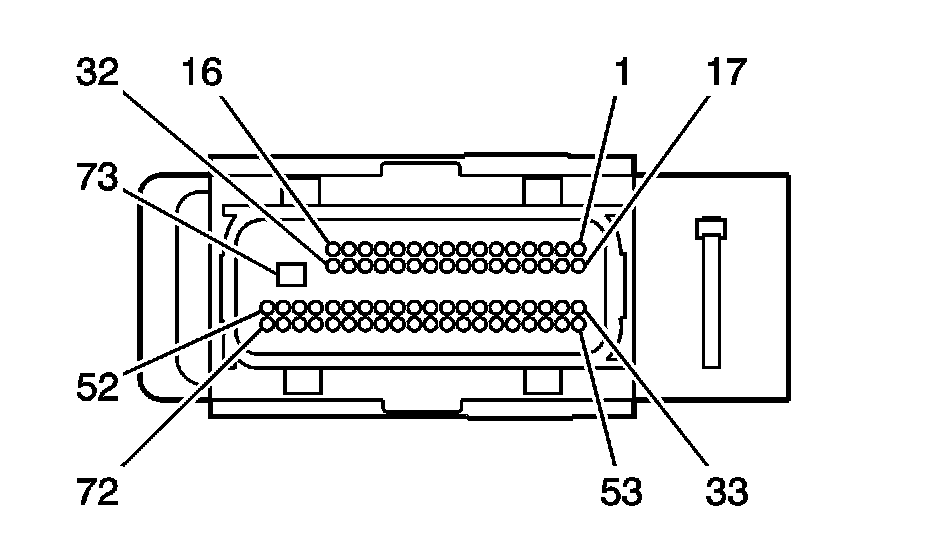

Component Connector End ViewsEngine Control Module (ECM) X1 (Gas)Engine Control Module (ECM) X1 (Gas) (Pin 1 To 30):

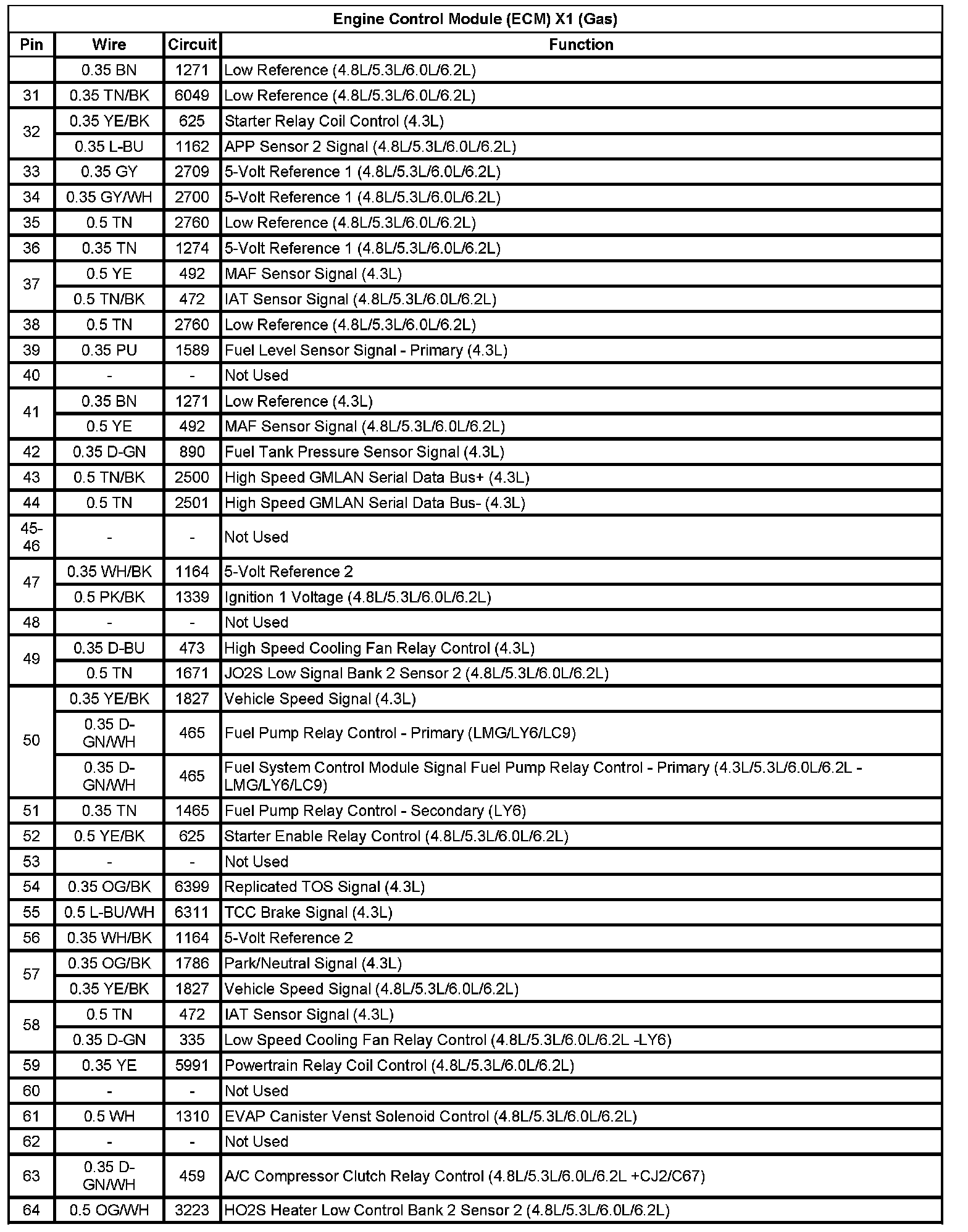

Engine Control Module (ECM) X1 (Gas) (Pin 31 To 64):

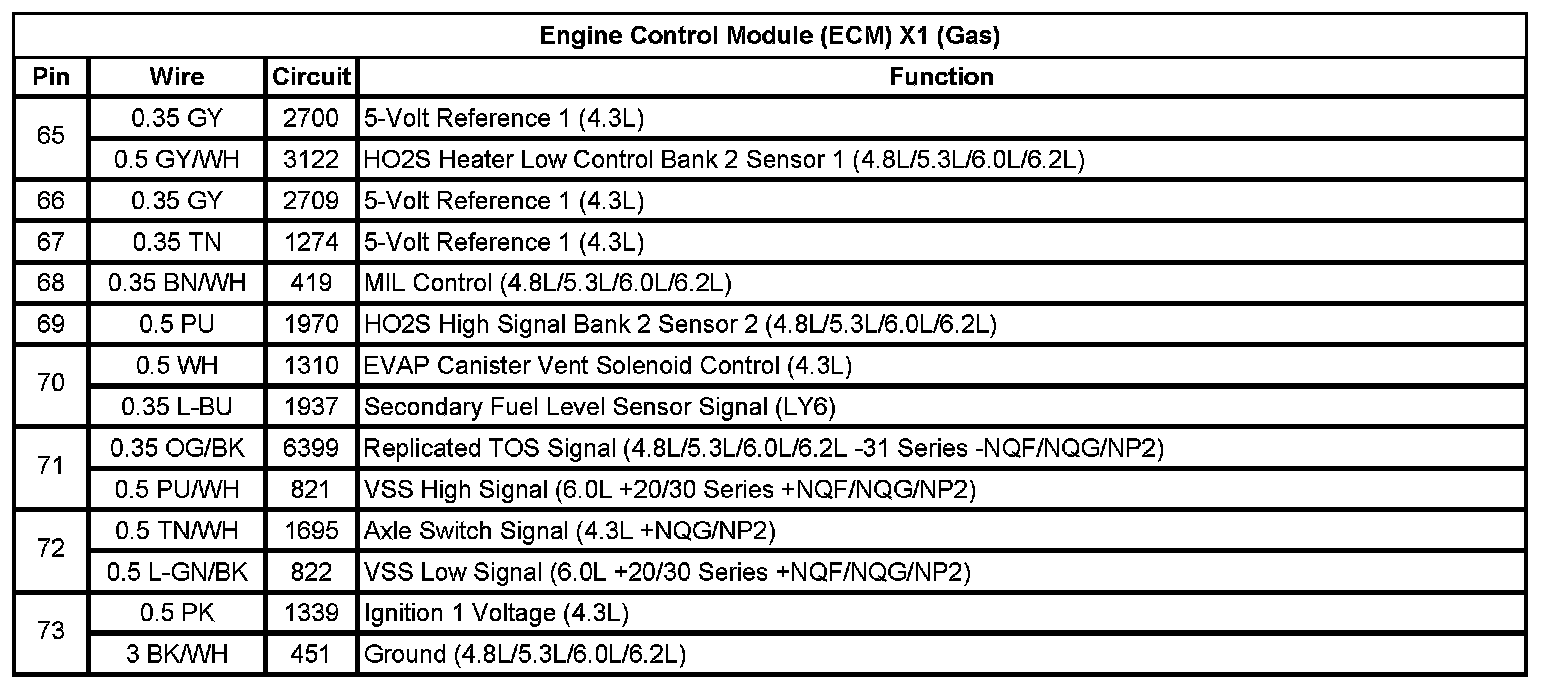

Engine Control Module (ECM) X1 (Gas) (Pin 65 To 73):

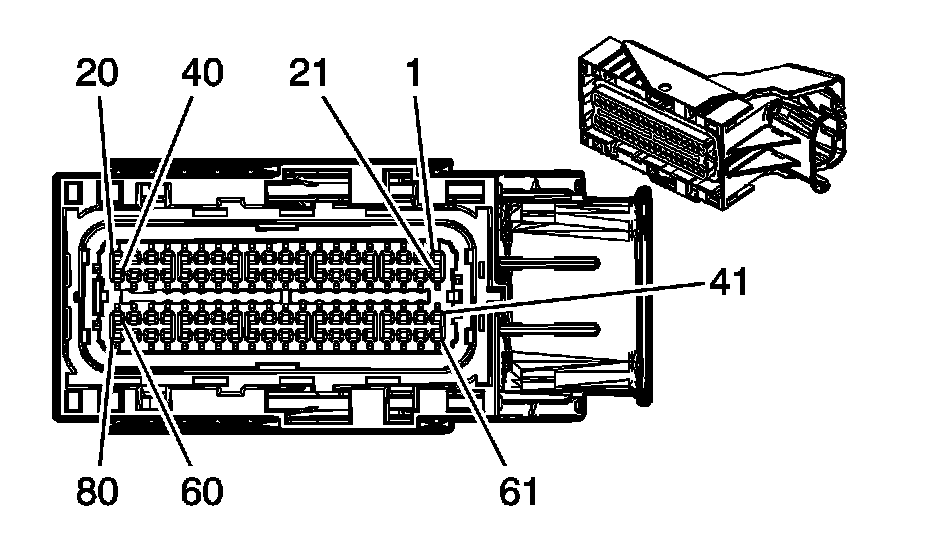

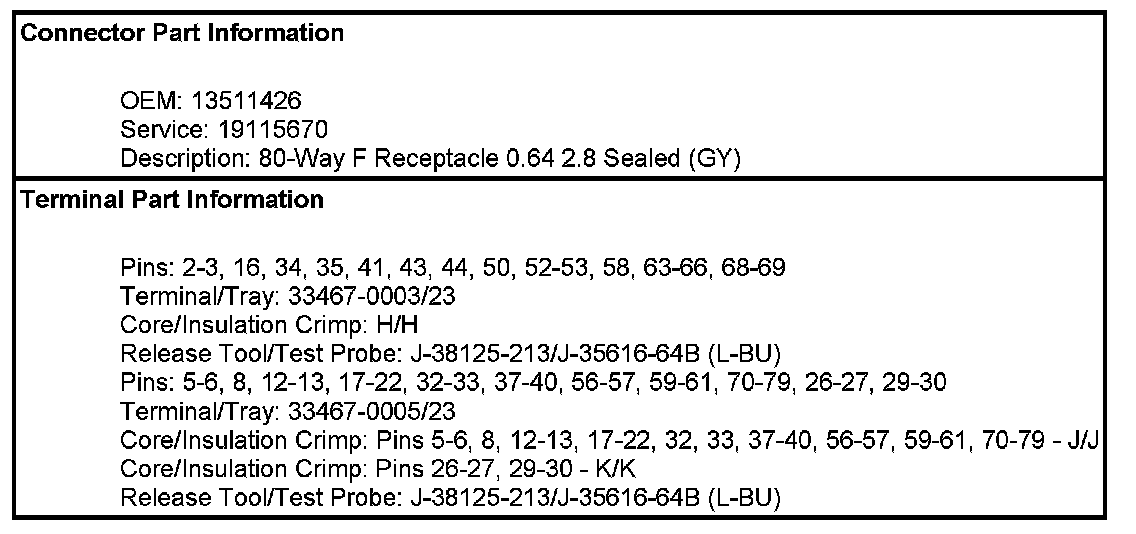

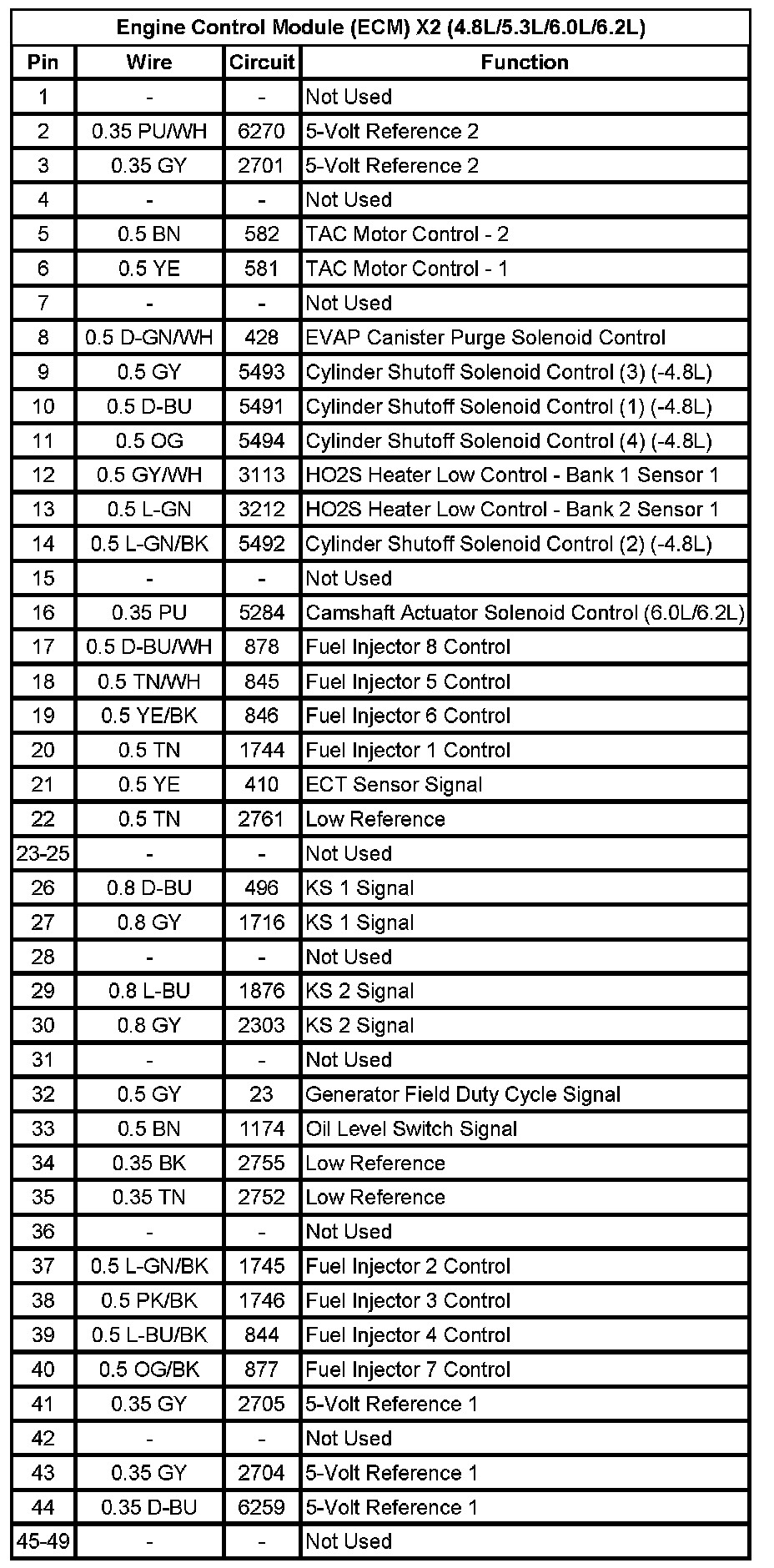

Engine Control Module (ECM) X2 (4.8L/5.3L/6.0L/6.2L)Engine Control Module (ECM) X2 (4.8L/5.3L/6.0L/6.2L) (Pin 1 To 49):

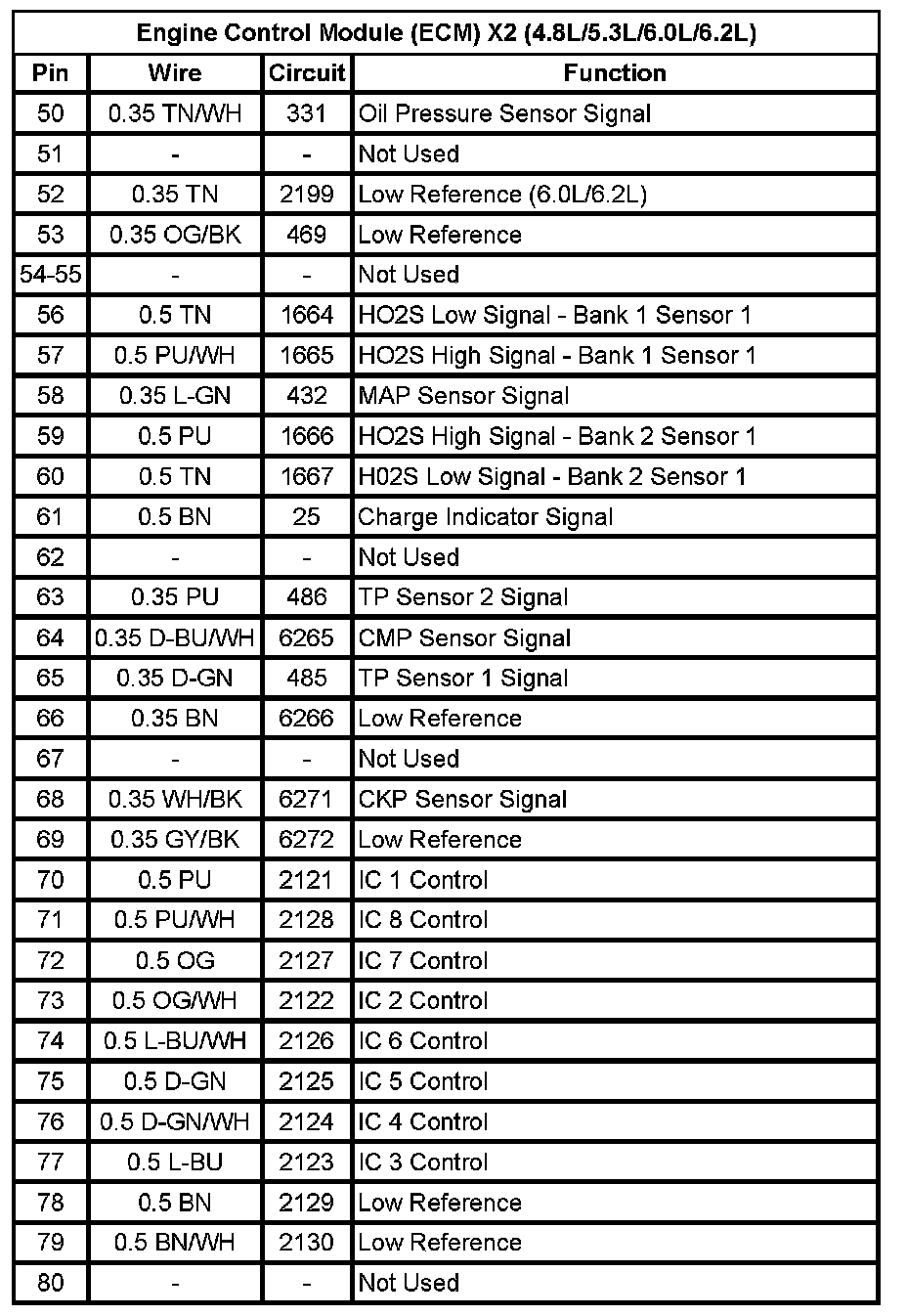

Engine Control Module (ECM) X2 (4.8L/5.3L/6.0L/6.2L) (Pin 50 To 80):
![]()
