Fuel Pressure Control Module: Service and Repair

Fuel Pump Flow Control Module Replacement

Removal Procedure




1. Remove the spare tire and wheel.

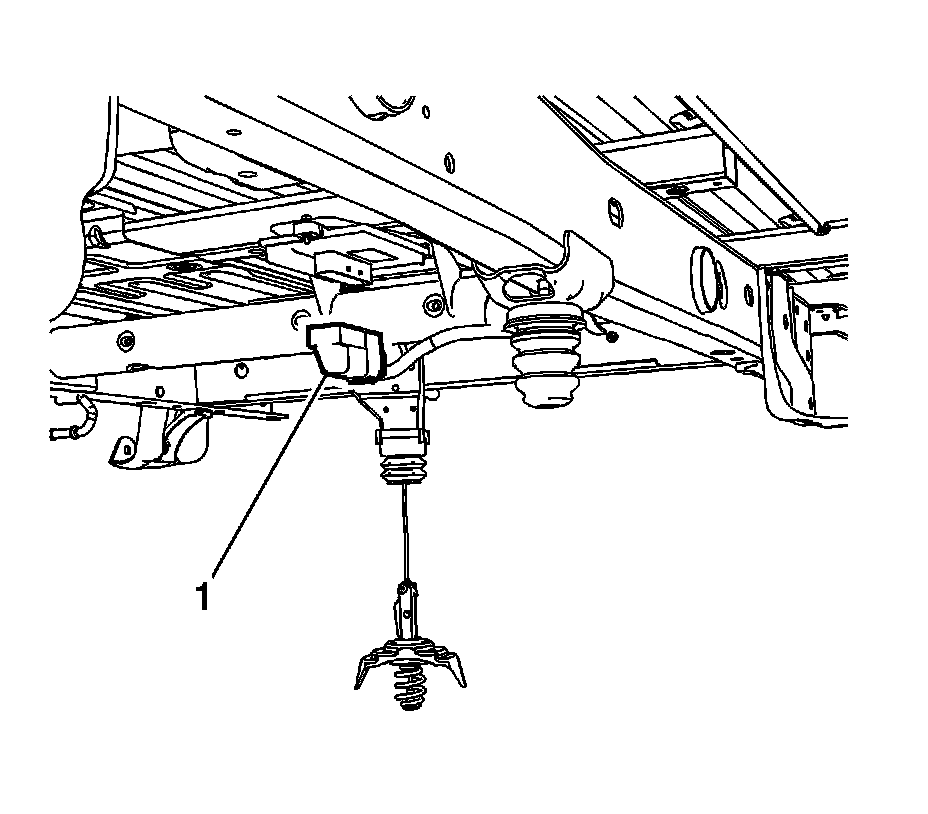

2. Disconnect the chassis wiring harness electrical connector (1) from the fuel pump flow control module.

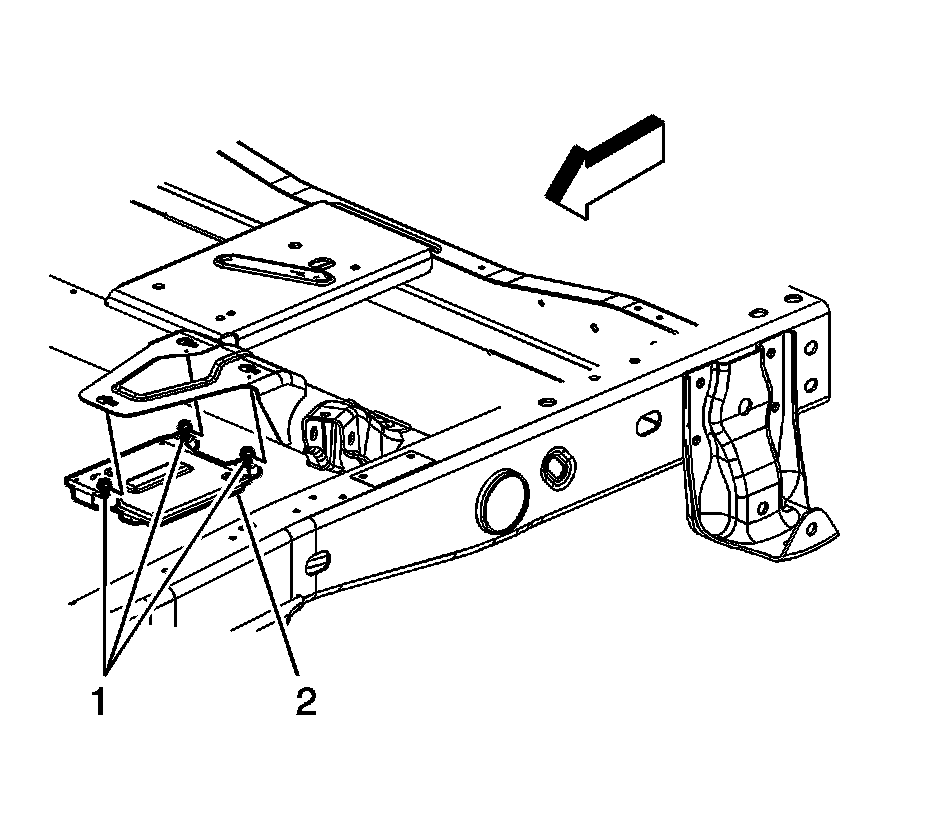

3. Loosen the fuel pump flow control module bolts (1).
4. Slide the fuel pump flow control module (2) towards the passenger side of the vehicle.
5. Remove the fuel pump flow control module from the vehicle.

Installation Procedure




1. Position the fuel pump flow control module (2) to the vehicle.
2. Slide the fuel pump flow control module towards the driver side of the vehicle.

Notice: Refer to Fastener Notice.

3. Tighten the fuel pump flow control module bolts (1).

Tighten the bolts to 9 N.m (80 lb in).




4. Connect the chassis wiring harness electrical connector (1) to the fuel pump flow control module.
5. Install the spare tire and wheel.
6. Program the fuel pump flow control module.
