Connector Views

Component Connector End Views - Continued

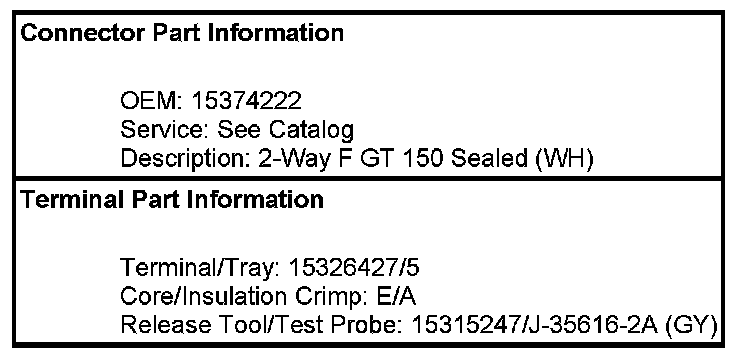

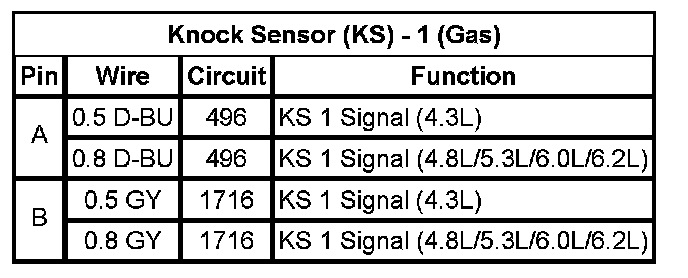

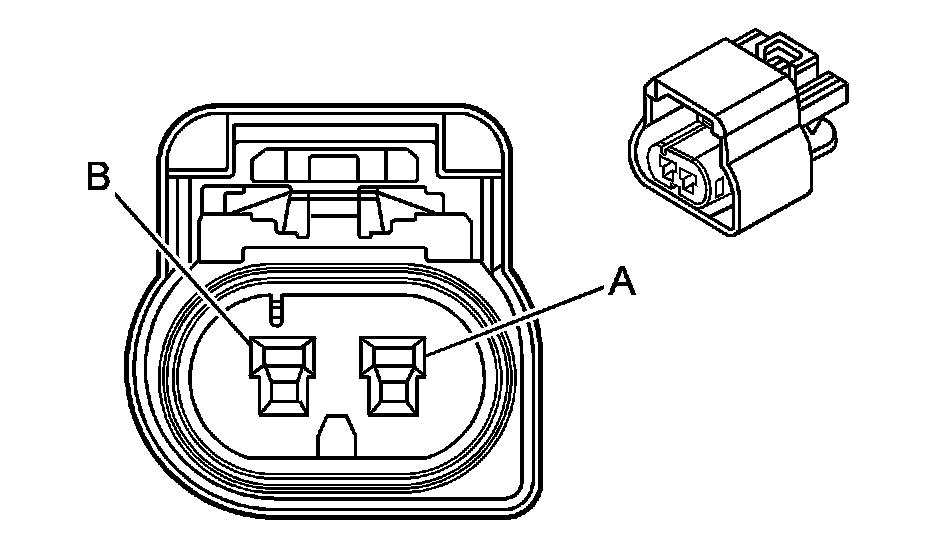

Knock Sensor (KS) - 1 (Gas)

Technical service diagram

Technical service diagram

Technical service diagram

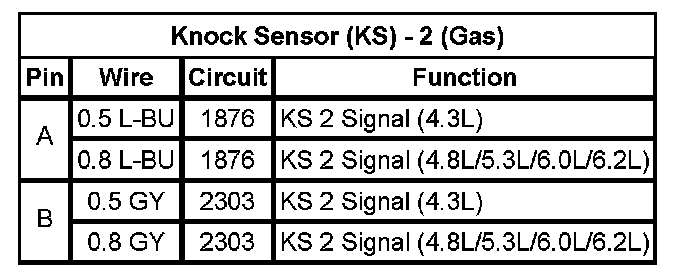

Knock Sensor (KS) - 2 (Gas)

Technical service diagram

Technical service diagram

Technical service diagram
