Connector Views

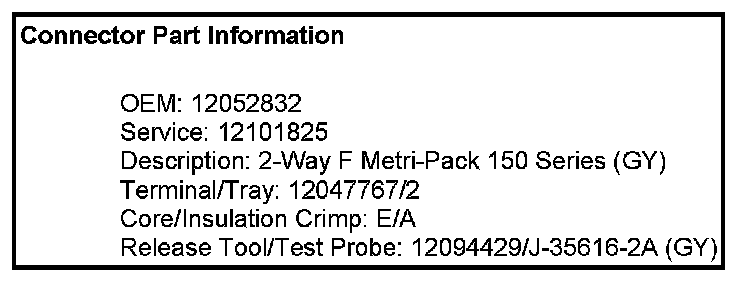

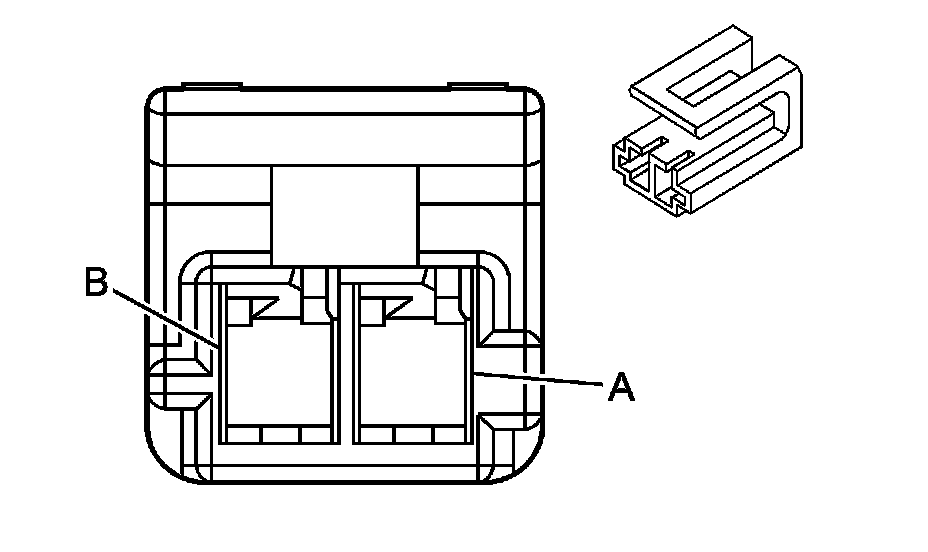

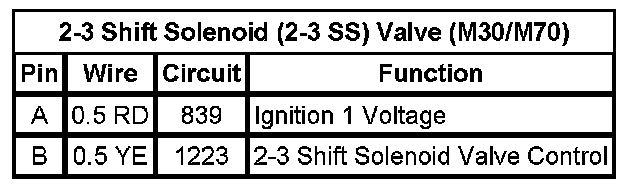

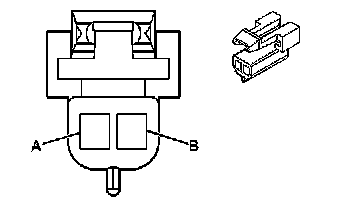

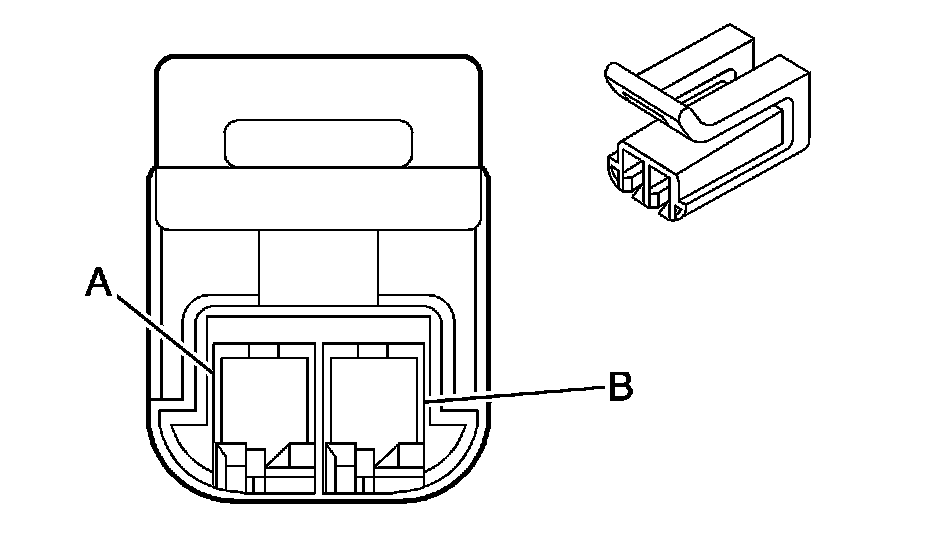

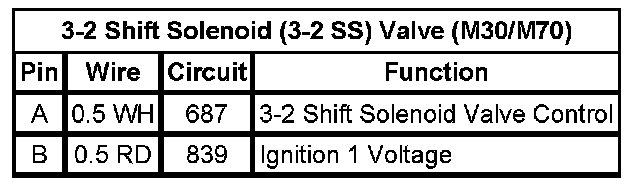

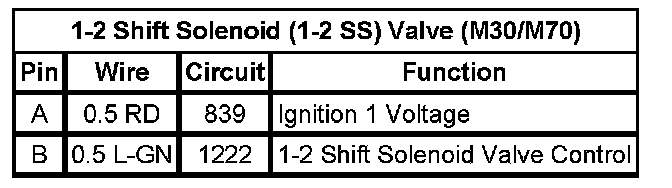

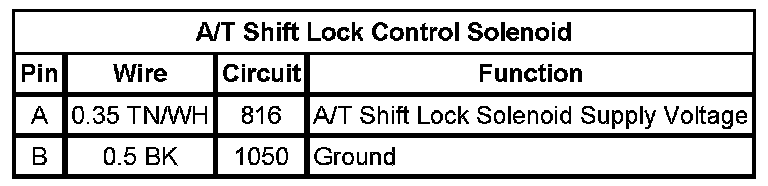

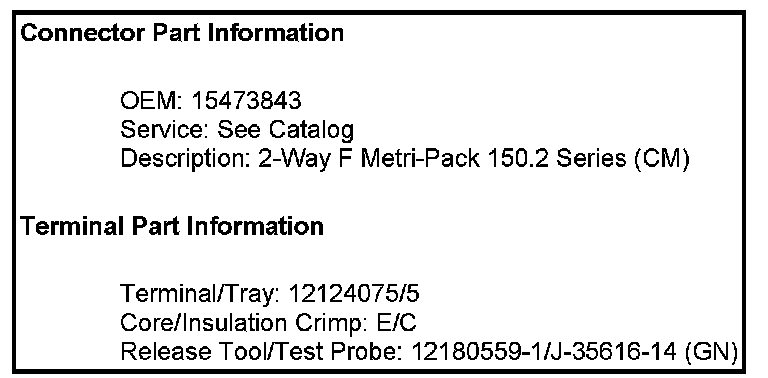

Component Connector End Views1-2 Shift Solenoid (1-2 SS) Valve (M30/M70)2-3 Shift Solenoid (2-3 SS) Valve (M30/M70)3-2 Shift Solenoid (3-2 SS) Valve (M30/M70)A/T Shift Lock Control SolenoidA/T Shift Lock Control Solenoid:

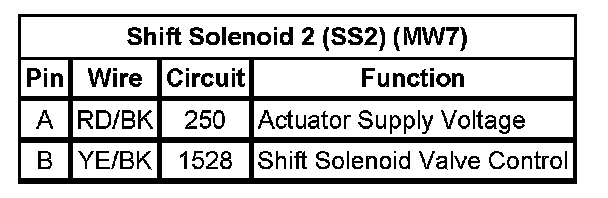

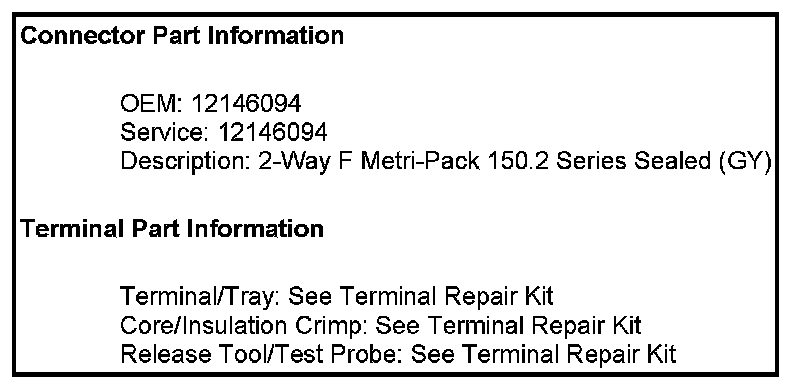

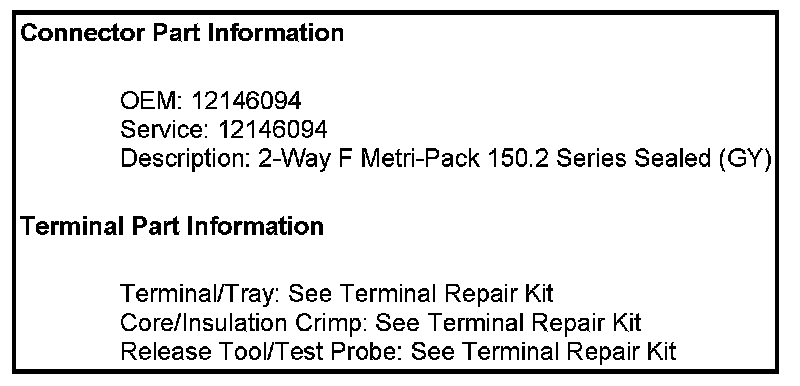

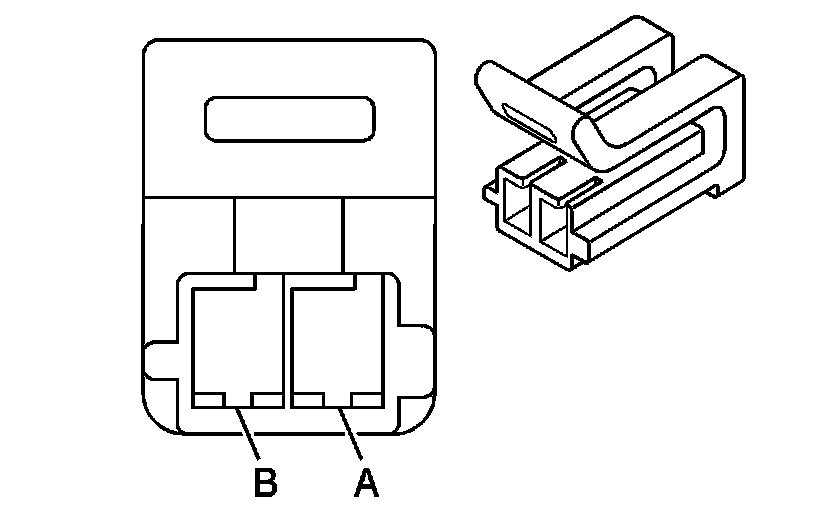

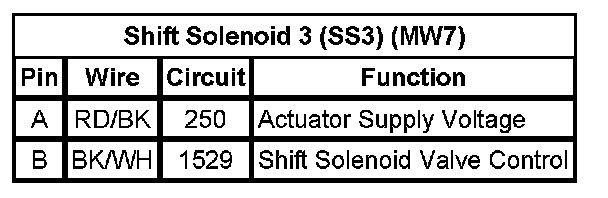

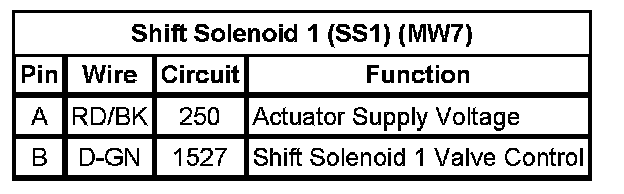

Shift Solenoid 1 (SS1) (MW7)Shift Solenoid 2 (SS2) (MW7)Shift Solenoid 3 (SS3) (MW7)
![]()
