Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

Transfer Case Actuator: Diagrams

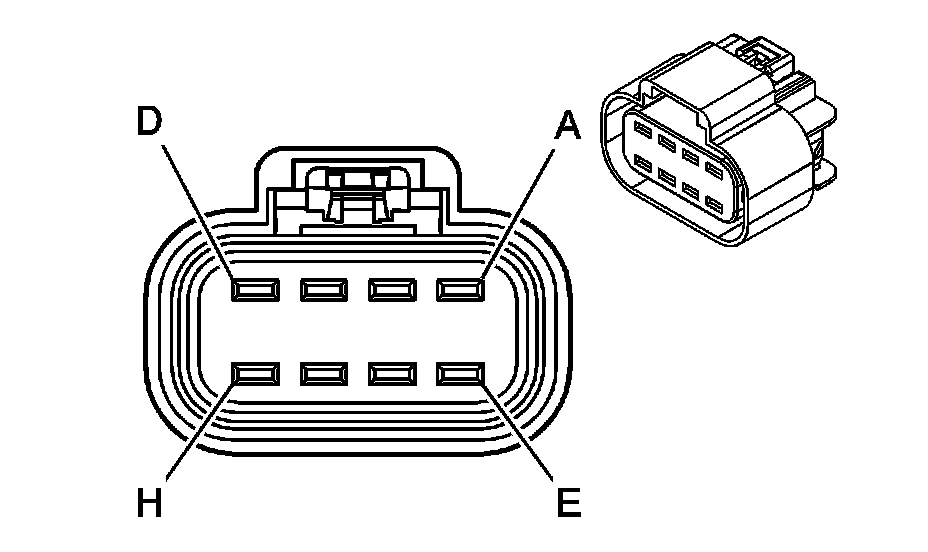

Component Connector End Views - Continued

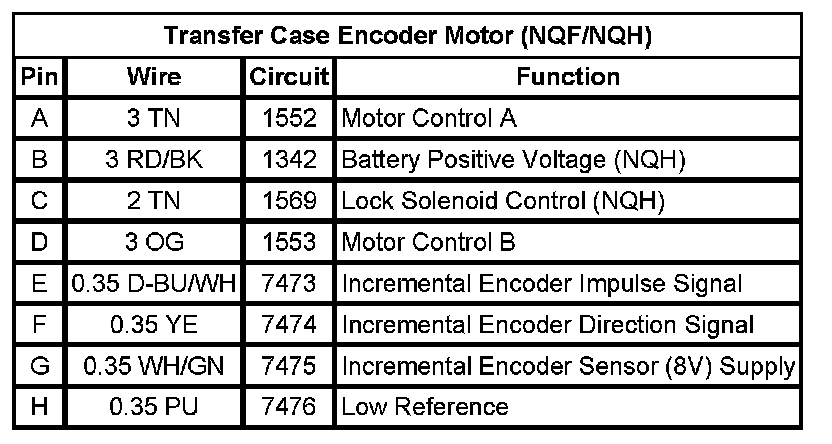

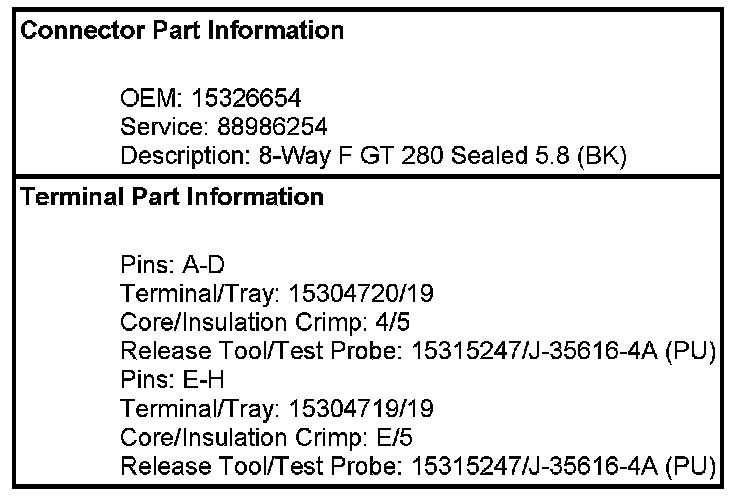

Transfer Case Encoder Motor (NQF/NQH)

Technical service diagram

Technical service diagram

Technical service diagram
