Power Steering Pump Seal: Service and Repair

Power Steering Pump Shaft Seal Replacement

Removal Procedure

1. Remove the power steering pump from the vehicle. Refer to Power Steering Pump Replacement (4.3L) (Service and Repair)Power Steering Pump Replacement (4.8L, 5.3L, 6.0L, and 6.2L) (Service and Repair)Power Steering Pump Replacement (6.6L) (Service and Repair) .





Important: Use the shim stock in order to protect the drive shaft.

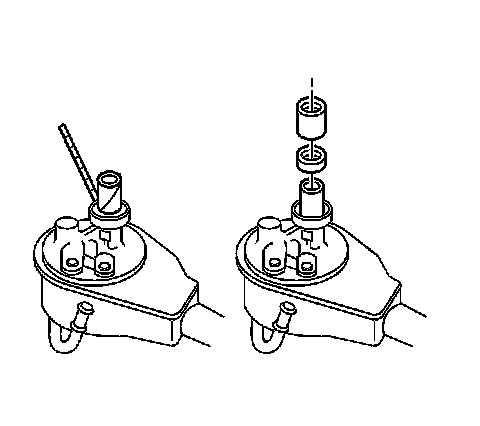

2. Use a chisel in order to cut and remove the power steering pump shaft seal.



Installation Procedure





1. Lubricate the new power steering pump shaft seal with power steering fluid.
2. Use a deep 1 inch tall socket in order to install the new power steering pump shaft seal.
3. Install the power steering pump. Refer to Power Steering Pump Replacement (4.3L) (Service and Repair)Power Steering Pump Replacement (4.8L, 5.3L, 6.0L, and 6.2L) (Service and Repair)Power Steering Pump Replacement (6.6L) (Service and Repair) .
