Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

Transfer Case Front Half Cleaning and Inspection

Transfer Case Front Half Cleaning and Inspection

Technical service diagram

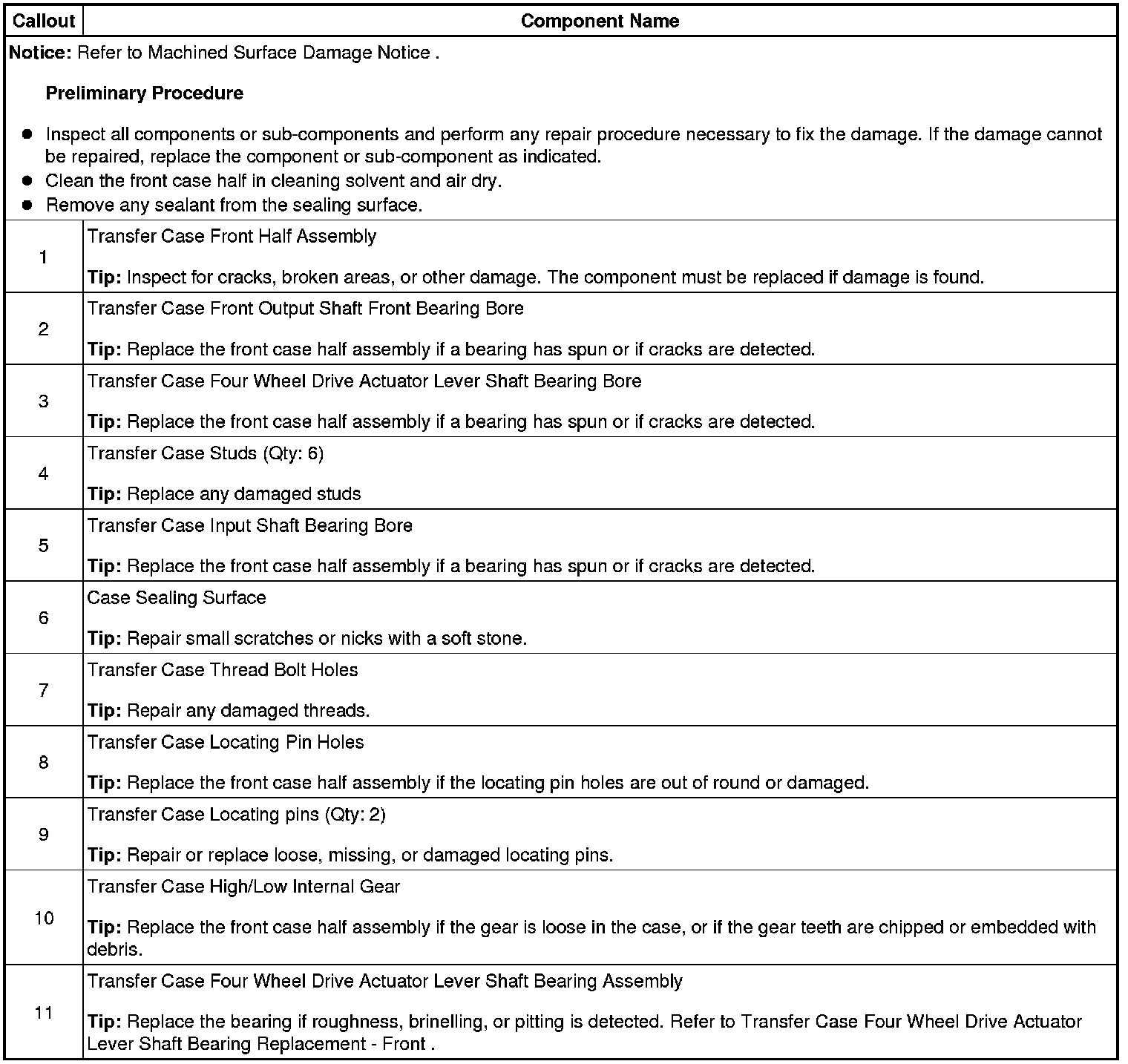

Technical service diagram
