Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

21. Oil Filter Removal

Oil Filter Removal

Technical service diagram

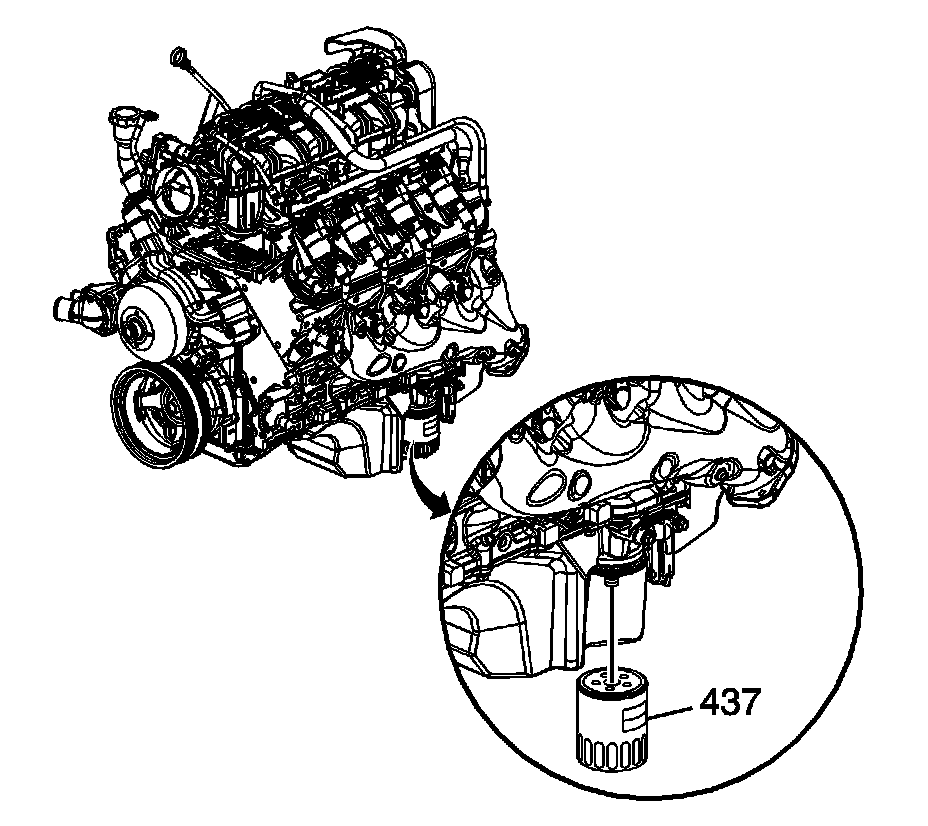

1. Remove the oil filter (437).

Technical service diagram

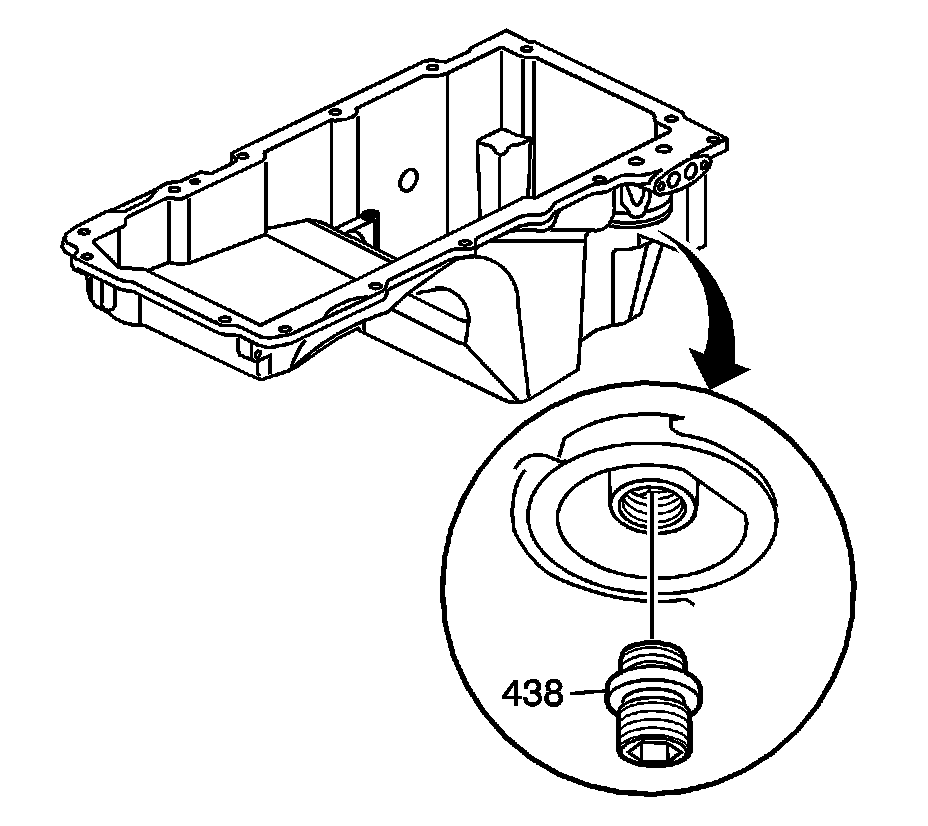

2. Remove the oil filter fitting (438).
