Exterior Lights Diagram 5

Exterior Lights Schematics

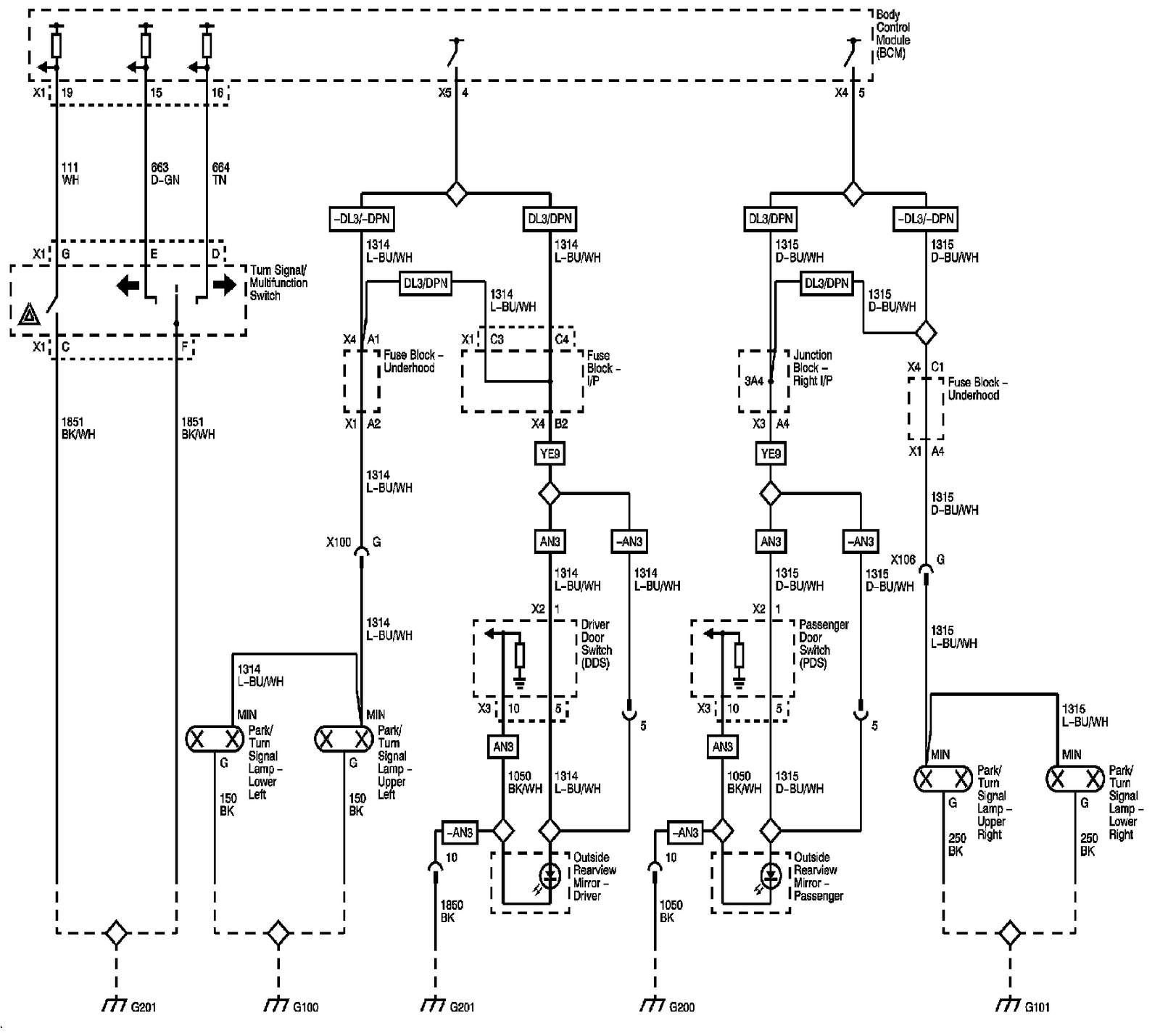

Turn Signal Controls and Front Turn Signal Lamps

Exterior Lights Diagram 5:

Next Diagram: Exterior Lights Diagram 6

Previous Diagram: Exterior Lights Diagram 4

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
