Accumulator: Service and Repair



Accumulator Assembly, Spacer Plate, and Gaskets


Tools Required
* J 25025-B Dial Indicator Post and Guide Pin Set
* J 36850 Transjel Lubricant



Removal Procedure


Technical service diagram



1. Remove the transmission filter. Refer to Automatic Transmission Fluid and Filter Replacement (Removal and Replacement) .

Important: The 1-2 accumulator can be removed without removing the valve body.


2. Remove the valve body. Refer to Valve Body and Pressure Switch Replacement (4L60-E/4L65-E/4L70-E - Automatic Transmission) .

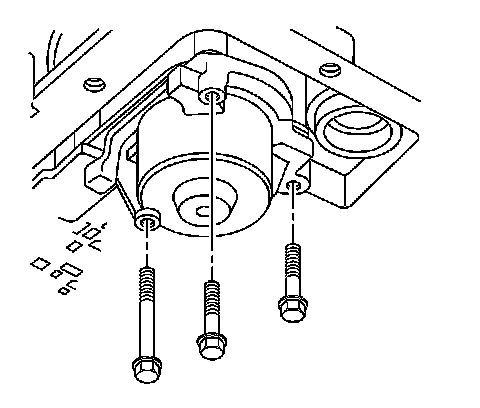

3. Remove the accumulator cover bolts.
4. Remove the 1-2 accumulator cover.

Technical service diagram




Important: regular production option (RPO) M33 transmissions do not use a 1-2 accumulator spring inner (104).


5. Remove the 1-2 accumulator cover (57) and pin.
6. Disassemble the 1-2 accumulator assembly (54, 56, 57, 104).
7. Inspect the 1-2 accumulator springs for cracks.

Technical service diagram



8. Remove the 1-2 accumulator piston seal (1) from the 1-2 accumulator piston.
9. Inspect the 1-2 accumulator piston for the following conditions:

* Porosity
* Cracks
* Scoring
* Nicks and scratches


Technical service diagram

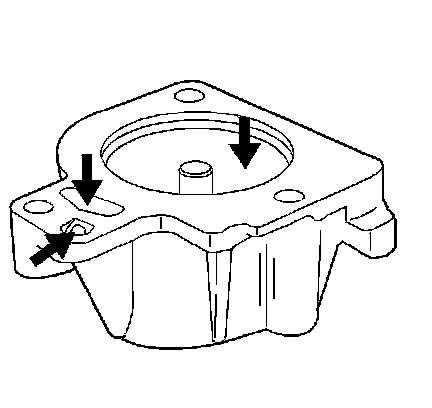

10. Inspect the 1-2 accumulator cover for the following conditions:

* Porosity
* Cracks
* Scoring
* Nicks and scratches


Technical service diagram



11. Remove the spacer plate support bolts.

Important: Use care not to drop the following items that will be removed along with the spacer plate:


* The number 1 checkball

* The 3-4 accumulator spring

* The 3-4 accumulator pin



12. Remove the spacer plate support.

Technical service diagram

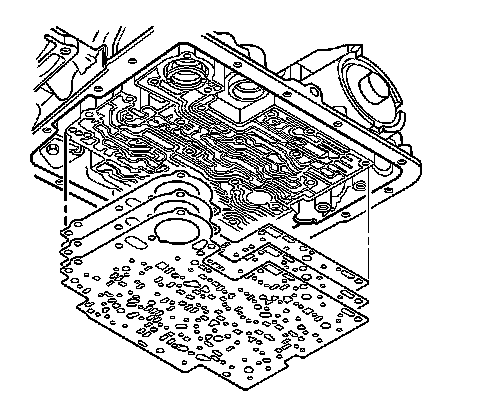

13. Remove the spacer plate to valve body gasket, the spacer plate and the spacer plate to transmission case gasket.

Technical service diagram



14. Remove the 3-4 accumulator piston (2).
15. Inspect the 3-4 accumulator spring for cracks.

Technical service diagram



16. Remove the 3-4 accumulator piston seal (1) from the 3-4 accumulator piston.
17. Inspect the 3-4 accumulator piston for the following conditions:

* Porosity
* Cracks
* Scoring
* Nicks and scratches




Installation Procedure


Technical service diagram



1. Install a new 3-4 accumulator piston seal (1) to the 3-4 accumulator piston.

Technical service diagram



2. Install the 3-4 accumulator pin (1) into the transmission case and retain the pin with J 36850 .

Technical service diagram



3. Install the 3-4 accumulator piston (2) onto the pin (1) in the transmission case.
Ensure that the 3-4 accumulator piston legs face away from the transmission case.

Technical service diagram

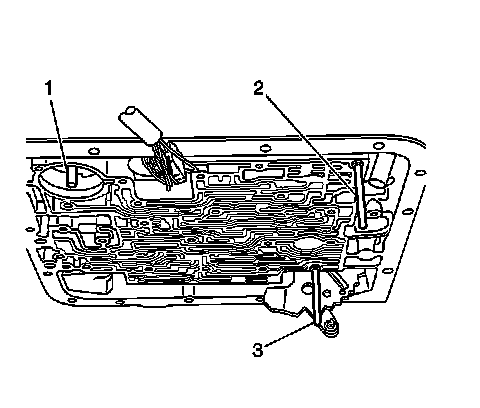

4. Install the J 25025-B (2, 3) to the transmission case.

Technical service diagram



5. Install the spacer plate to transmission case gasket and the spacer plate to valve body gasket to the spacer plate; use J 36850 in order to retain the gaskets to the spacer plate.

* The case gasket is identified by a C.
Be sure to place the case gasket on the transmission case side of the spacer plate.
* The valve body gasket is identified by a V.
Be sure to place the valve body gasket on the valve body side of the spacer plate.

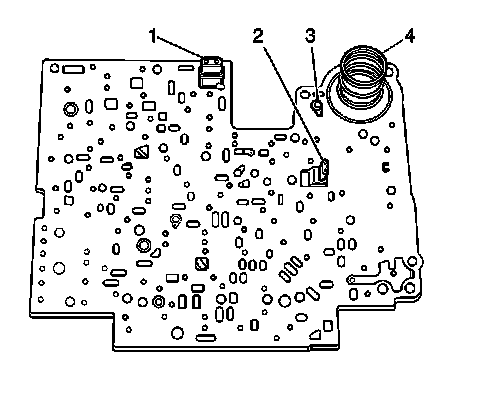

6. Ensure that the solenoid screens (1, 2) are in place on the spacer plate.
7. Place the checkball (3) on the spacer plate in the location shown.
8. Place the 3-4 accumulator spring (4) on the spacer plate.
9. Install the spacer plate and related components to the transmission.

Technical service diagram




Notice: Refer to Fastener Notice .

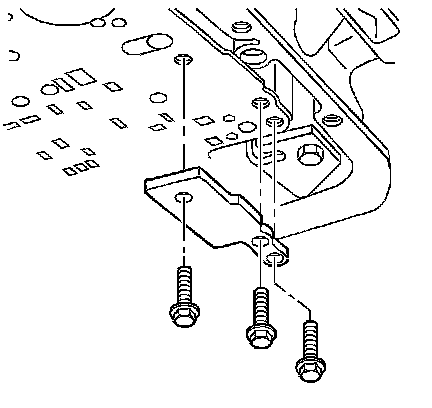

10. Install the spacer plate support and the spacer plate support bolts.

Tighten the bolts to 11 N.m (97 lb in).


Technical service diagram

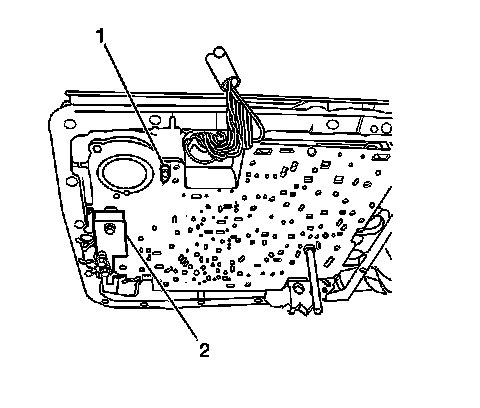

11. After installing the spacer plate support (2), look through the hole in the spacer plate to ensure that the checkball (1) has remained in the proper location.

Technical service diagram

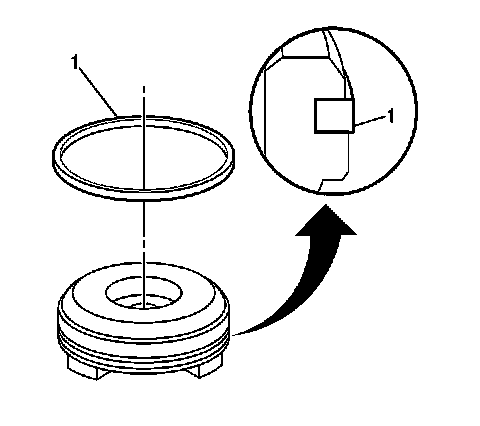

12. Install a new 1-2 accumulator piston seal (1) to the 1-2 accumulator piston.

Technical service diagram




Important: RPO M33 transmissions do not use a 1-2 accumulator spring inner (104).

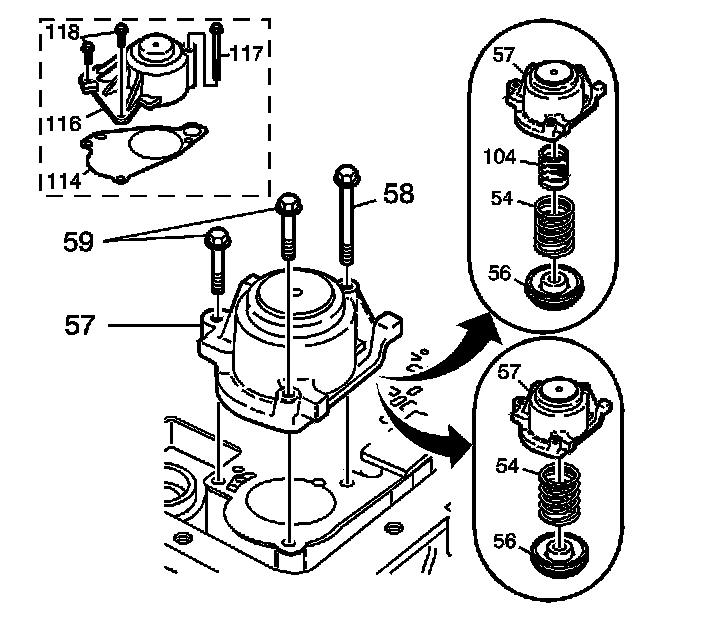

13. Assemble the 1-2 accumulator assembly (54, 56, 57, 104). Ensure that the piston legs face the accumulator cover.
14. Install the 1-2 accumulator cover (57) and pin.

Technical service diagram



15. Install the 1-2 accumulator cover and the accumulator cover bolts.

Tighten the bolts to 11 N.m (97 lb in).

16. Remove the J 25025-B from the transmission case.
17. Install the valve body. Refer to Valve Body and Pressure Switch Replacement (4L60-E/4L65-E/4L70-E - Automatic Transmission) .
18. Install the transmission filter. Refer to Automatic Transmission Fluid and Filter Replacement (Removal and Replacement) .

Important: It is recommended that transmission adaptive pressure (TAP) information be reset.


Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM) or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.


19. Reset the TAP values. Refer to Transmission Adaptive Functions (TCM) (Transmission Adaptive Functions (TCM)) .
