Hood Sensor/Switch (For Alarm): Diagrams

Component Connector End Views

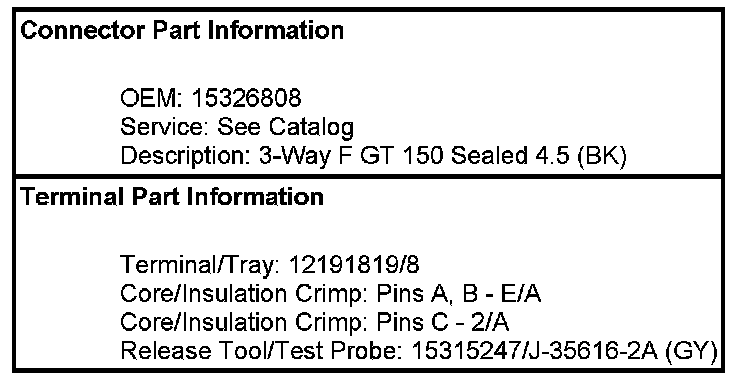

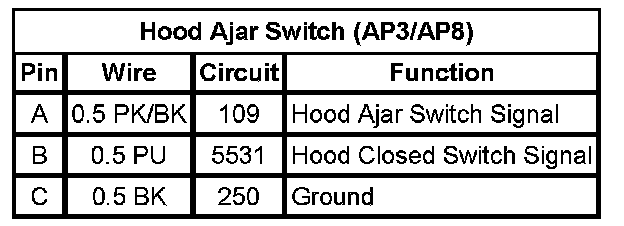

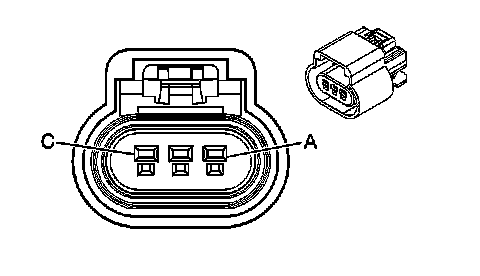

Hood Ajar Switch (AP3/AP8)

Technical service diagram

Technical service diagram

Technical service diagram
