Interior Lights Diagram 2

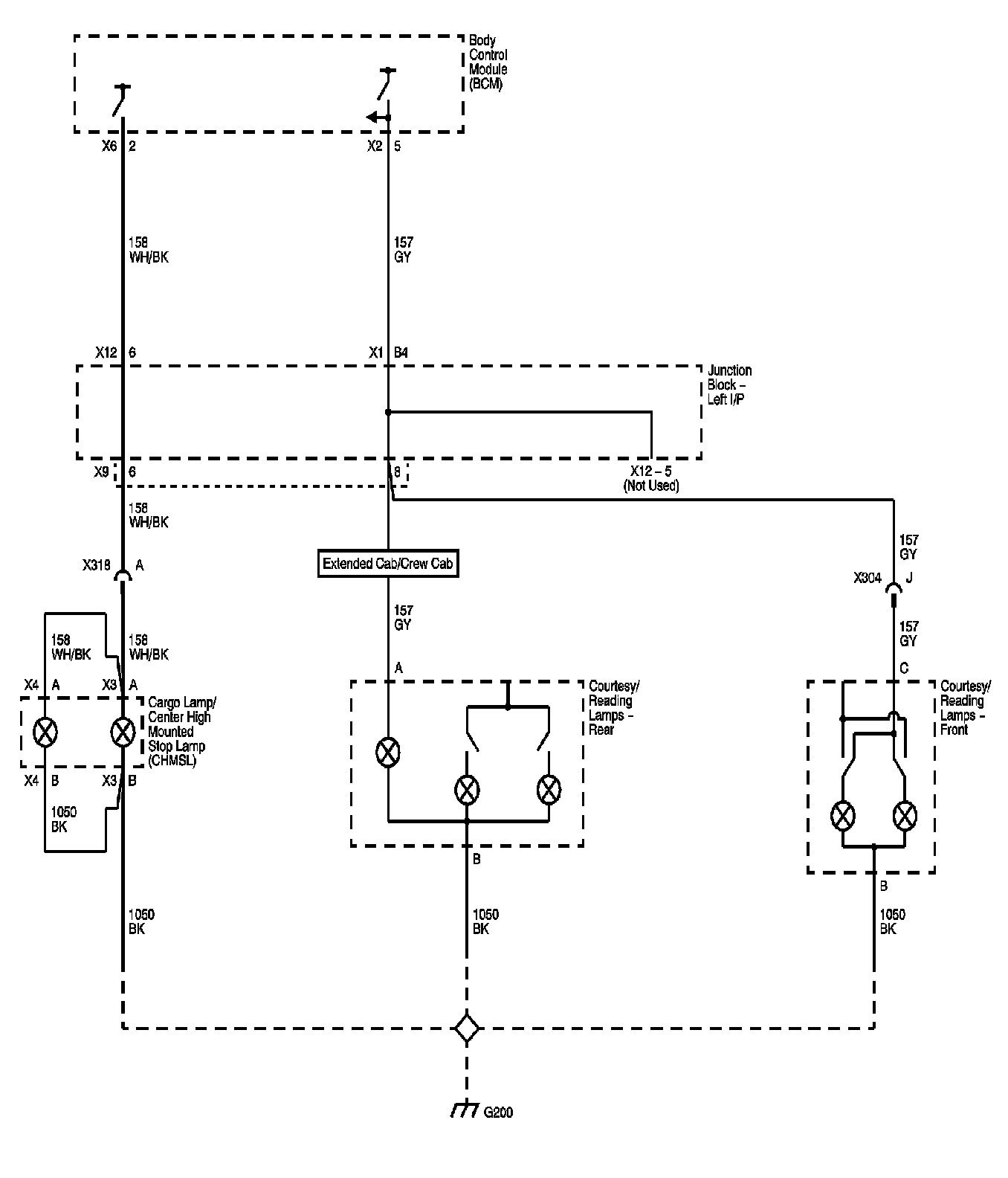

Interior Lights Schematics

Courtesy Lamp Control

Interior Lights Diagram 2:

Next Diagram: Interior Lights Diagram 3

Previous Diagram: Interior Lights Diagram 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
