Interior Lights Diagram 3

Interior Lights Schematics

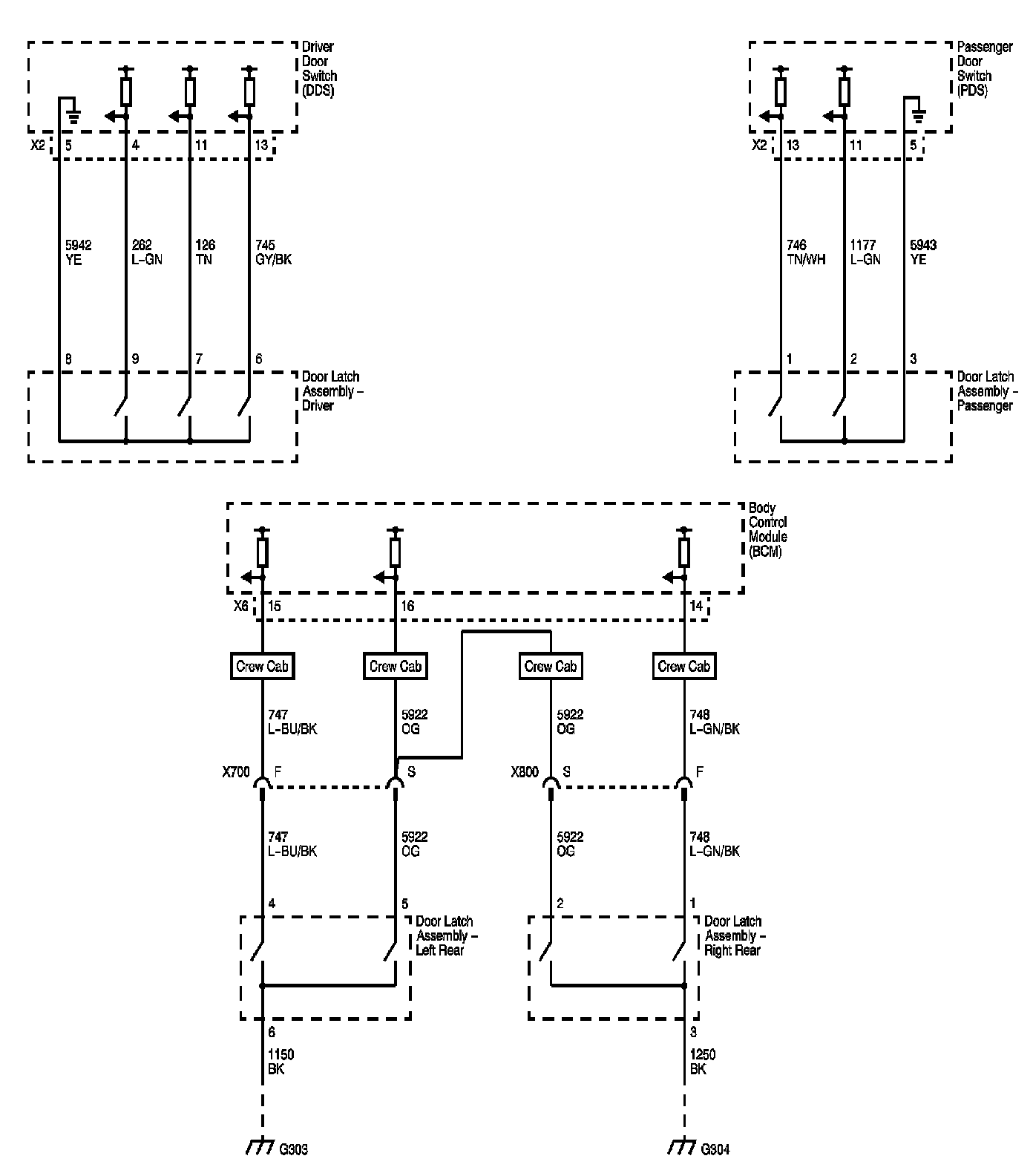

Door Jamb Switches (AN3/DL3)

Interior Lights Diagram 3:

Next Diagram: Interior Lights Diagram 4

Previous Diagram: Interior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
